Removal [08/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT WHEEL RH
  2. REMOVE ENGINE UNDER COVER RH

    See step  7 See step  7

  3. REMOVE NO. 2 CYLINDER HEAD COVER

    See step  11 See step  11

  4. REMOVE V-RIBBED BELT

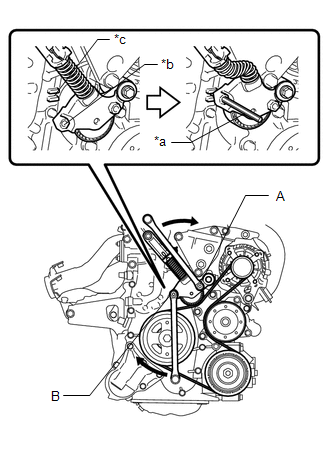

    1. Attach a wrench to the hexagonal portion (A) or (B) of the V-ribbed belt tensioner assembly as shown in the illustration.
      GTY431534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 5 mm Bi-hexagon Wrench
      *b Hole
      *c Gap
    2. Rotate the V-ribbed belt tensioner assembly clockwise to align the hole with the gap, and then insert a 5 mm bi-hexagon wrench into the hole and gap to secure the V-ribbed belt tensioner assembly.
    3. Remove the V-ribbed belt from the V-ribbed belt tensioner assembly.
