Components [08/2013 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

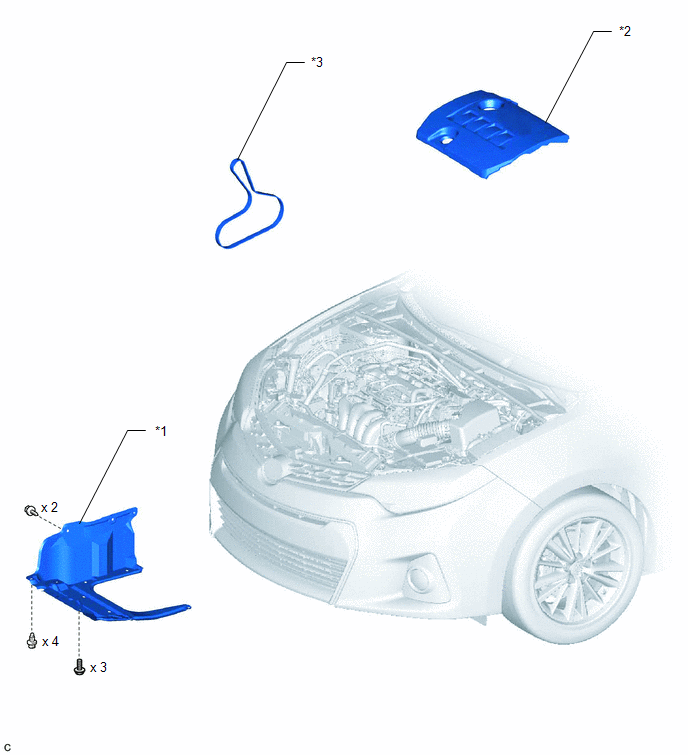

Fig 1: Drive Belt Replacement Components
GTY436929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ENGINE UNDER COVER RH *2 NO. 2 CYLINDER HEAD COVER
*3 V-RIBBED BELT - -
