Components [08/2013 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

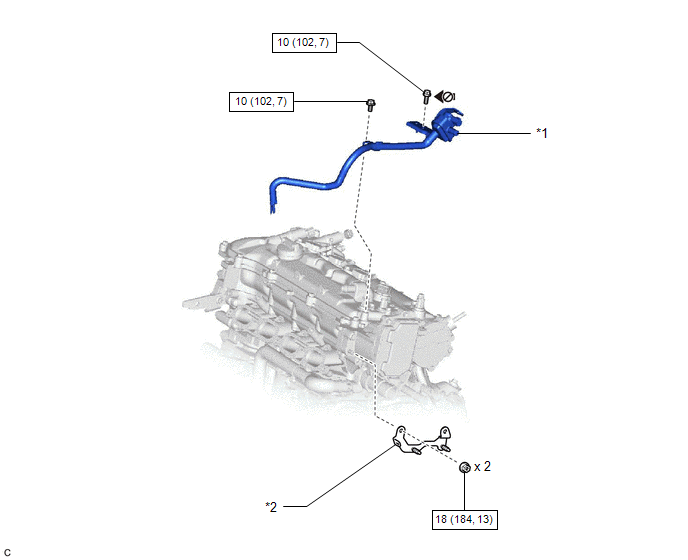

Fig 1: Camshaft Replacement Components With Torque Specifications (1 Of 7)
GTY717377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 1 VACUUM SWITCHING VALVE ASSEMBLY *2 WIRE HARNESS CLAMP BRACKET
N*m (kgf*cm, ft.*lbf): Specified torque Do not apply lubricants to the threads

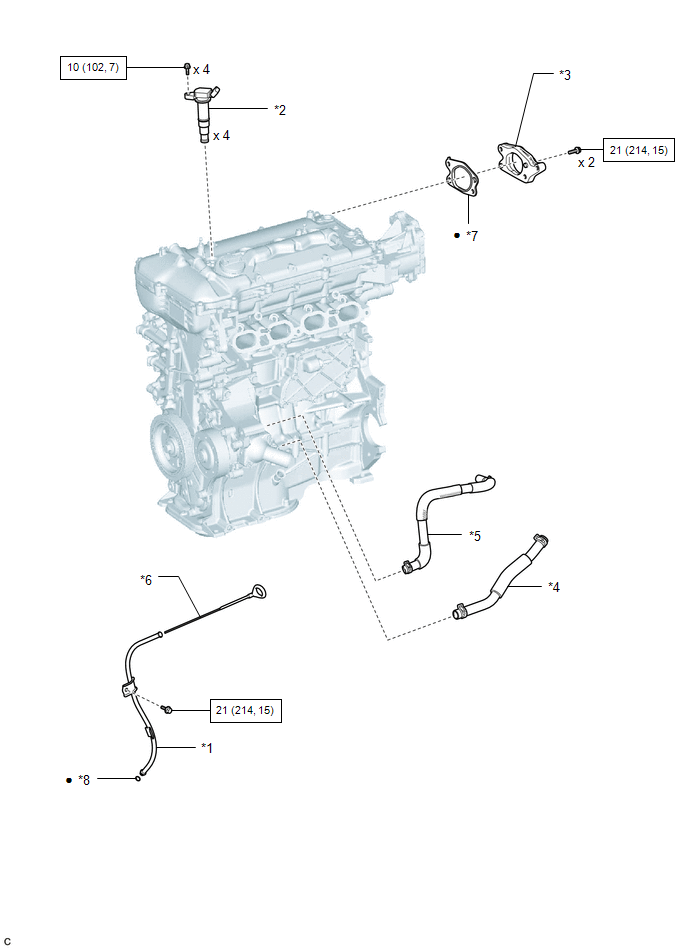

Fig 1: Camshaft Replacement Components With Torque Specifications (2 Of 7)
GTY438332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE OIL LEVEL DIPSTICK GUIDE *2 IGNITION COIL ASSEMBLY
*3 NO. 1 VACUUM PUMP BRACKET *4 NO. 3 WATER BY-PASS HOSE
*5 WATER INLET HOSE *6 ENGINE OIL LEVEL DIPSTICK
*7 GASKET *8 O-RING
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

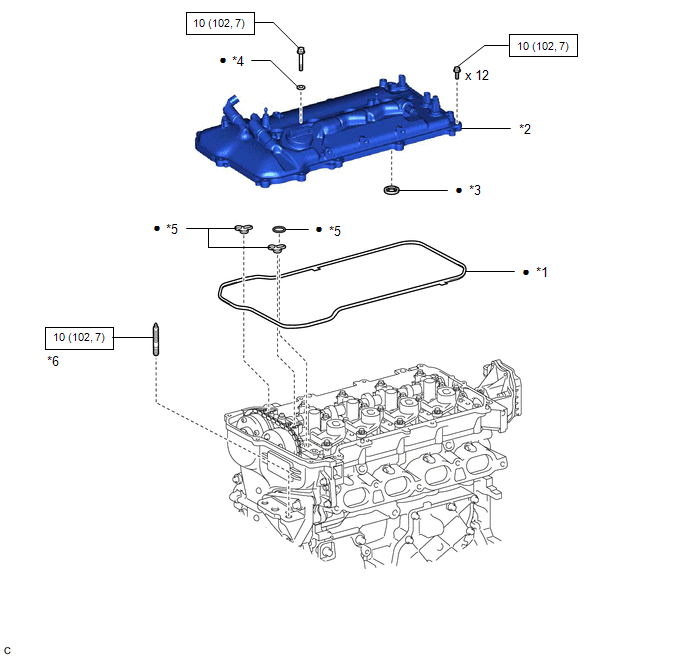

Fig 1: Camshaft Replacement Components With Torque Specifications (3 Of 7)
GTY447538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CYLINDER HEAD COVER GASKET *2 CYLINDER HEAD COVER SUB-ASSEMBLY
*3 SPARK PLUG TUBE GASKET *4 SEAL WASHER
*5 GASKET *6 STUD BOLT
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

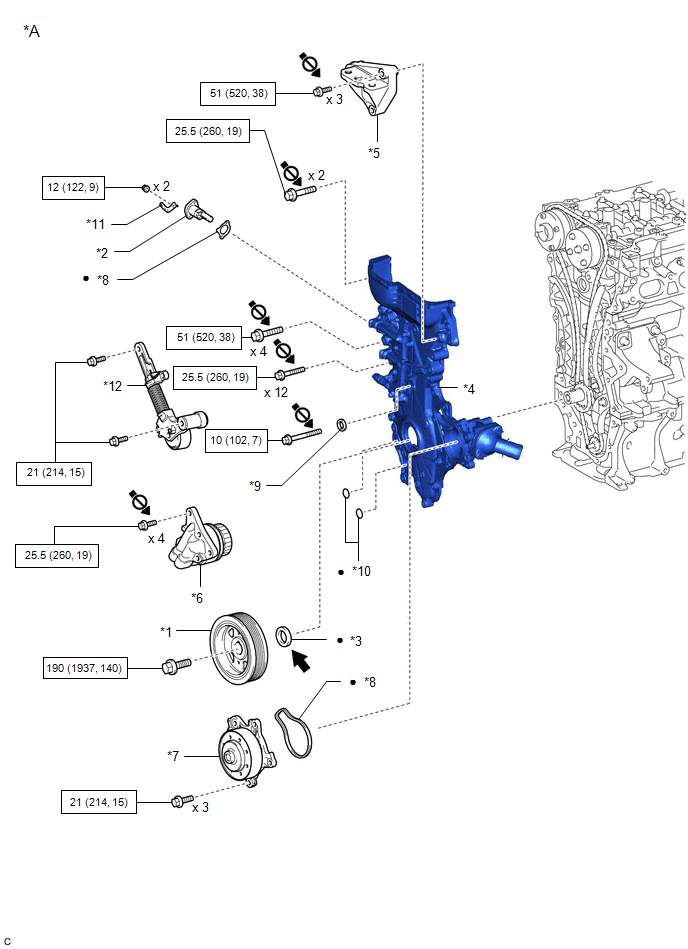

Fig 1: Camshaft Replacement Components With Torque Specifications (4 Of 7)
GTY702456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Oil Filter Element Kit Type - -
*1 CRANKSHAFT PULLEY *2 NO. 1 CHAIN TENSIONER ASSEMBLY
*3 TIMING CHAIN COVER OIL SEAL *4 TIMING CHAIN COVER SUB-ASSEMBLY
*5 ENGINE MOUNTING BRACKET RH *6 OIL FILTER BRACKET
*7 WATER PUMP ASSEMBLY *8 GASKET
*9 SEAL WASHER *10 O-RING
*11 BRACKET *12 V-RIBBED BELT TENSIONER ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
MP grease * Precoated part
Do not apply lubricants to the threads - -

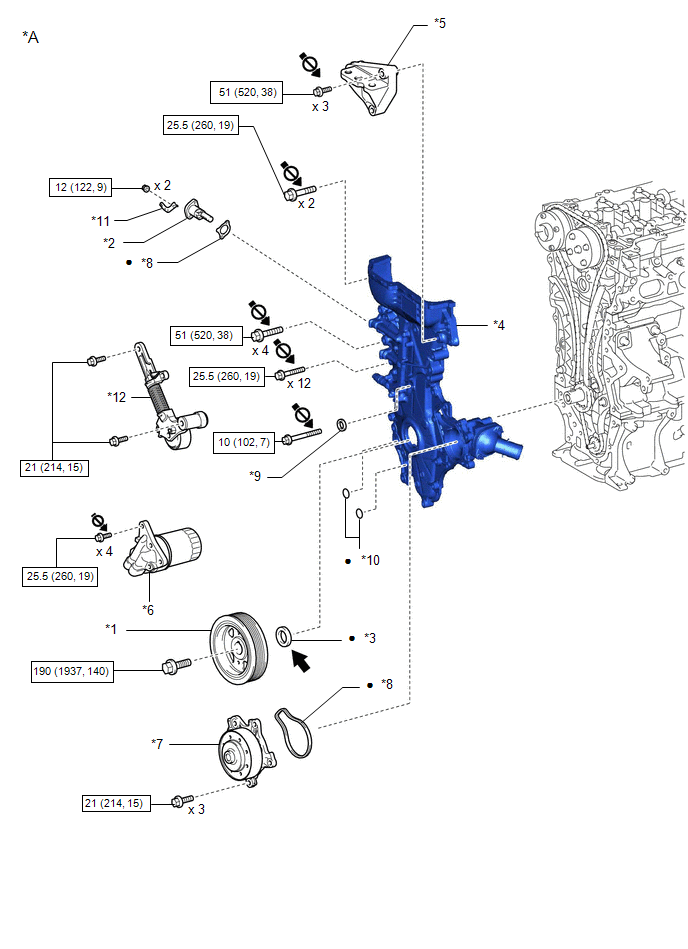

Fig 1: Camshaft Replacement Components With Torque Specifications (5 Of 7)
GTY707848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Oil Filter Sub-assembly Type - -
*1 CRANKSHAFT PULLEY *2 NO. 1 CHAIN TENSIONER ASSEMBLY
*3 TIMING CHAIN COVER OIL SEAL *4 TIMING CHAIN COVER SUB-ASSEMBLY
*5 ENGINE MOUNTING BRACKET RH *6 OIL FILTER BRACKET
*7 WATER PUMP ASSEMBLY *8 GASKET
*9 SEAL WASHER *10 O-RING
*11 BRACKET *12 V-RIBBED BELT TENSIONER ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
MP grease * Precoated part
Do not apply lubricants to the threads - -

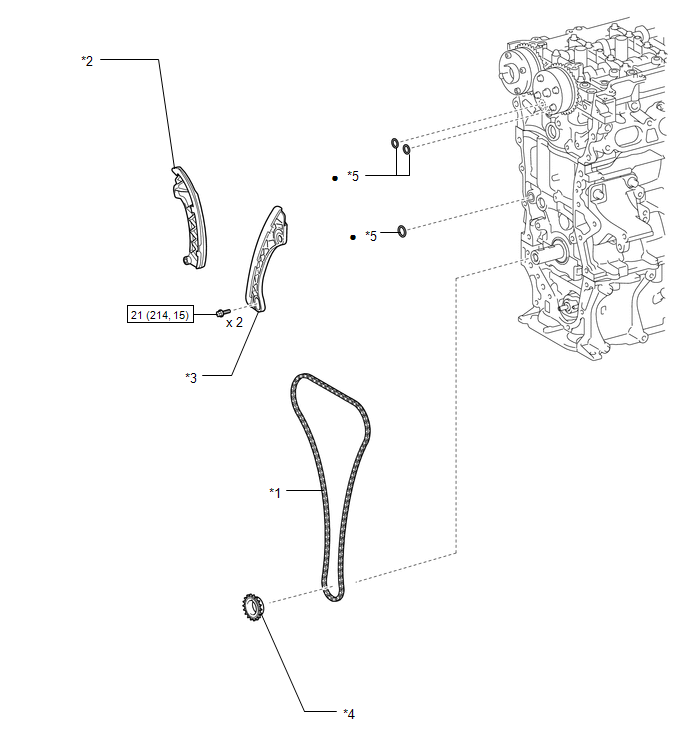

Fig 1: Camshaft Replacement Components With Torque Specifications (6 Of 7)
GTY449878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CHAIN SUB-ASSEMBLY *2 CHAIN TENSIONER SLIPPER
*3 NO. 1 CHAIN VIBRATION DAMPER *4 CRANKSHAFT TIMING SPROCKET
*5 O-RING - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

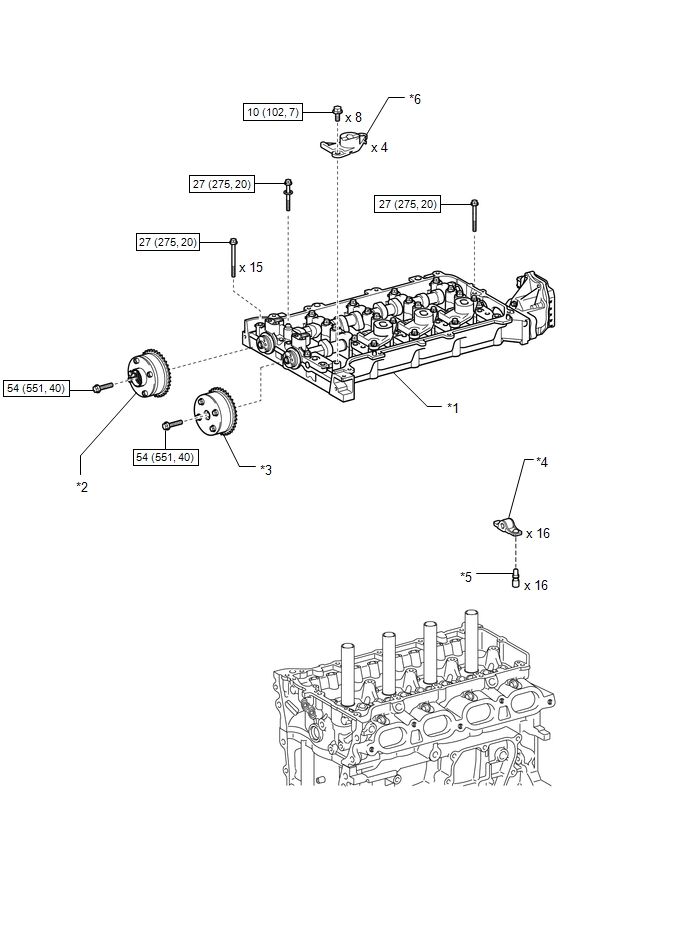

Fig 1: Camshaft Replacement Components With Torque Specifications (7 Of 7)
GTY450392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT HOUSING SUB-ASSEMBLY *2 CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY
*3 CAMSHAFT TIMING GEAR ASSEMBLY *4 NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY
*5 VALVE LASH ADJUSTER ASSEMBLY *6 VALVE ROCKER ARM LOST MOTION DAMPER SUB-ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque - -
