Parts Location [08/2013 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.

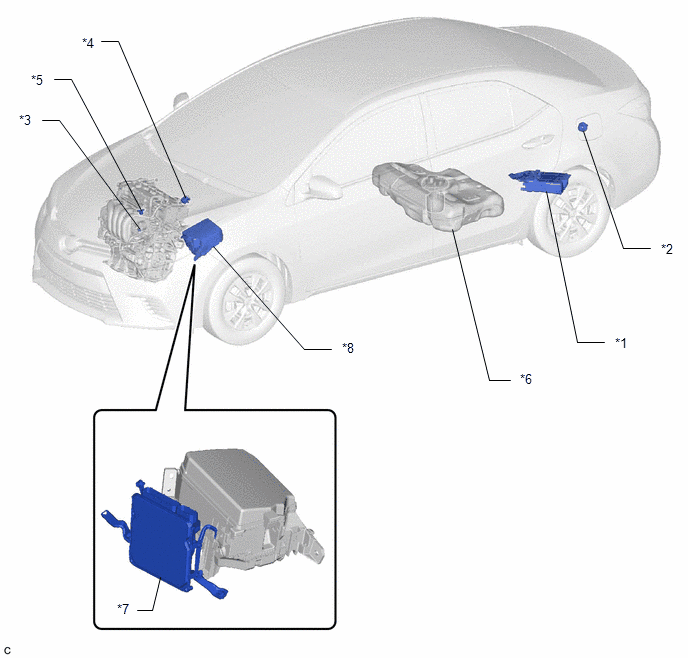

| *1 | CANISTER (CHARCOAL CANISTER ASSEMBLY) | *2 | FUEL TANK CAP ASSEMBLY |
| *3 | PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY) | *4 | PURGE VALVE (PURGE VSV) |
| *5 | VACUUM SENSOR (MANIFOLD ABSOLUTE PRESSURE SENSOR) | *6 | FUEL TANK ASSEMBLY |
| *7 | ECM | *8 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - EFI MAIN RELAY - EFI MAIN FUSE - EFI NO. 1 FUSE - EFI NO. 2 FUSE |
