Components [08/2013 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

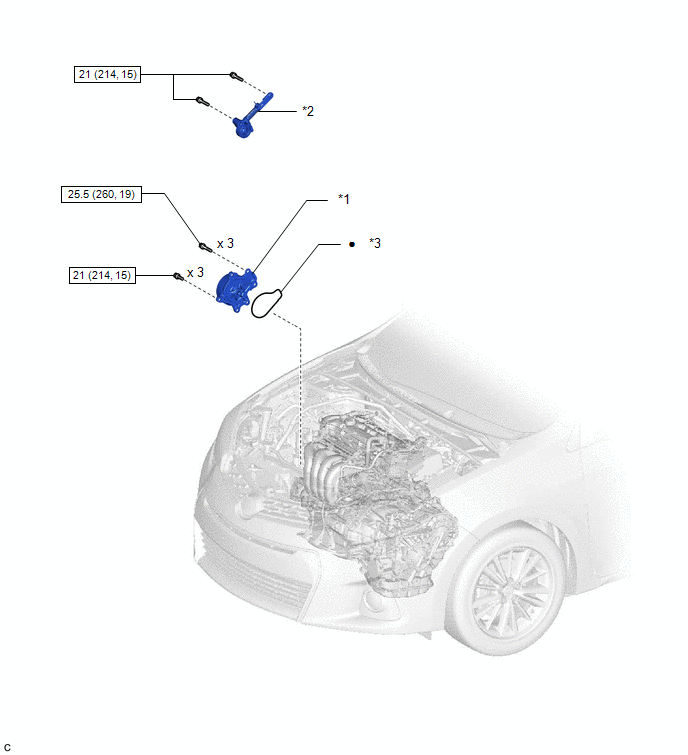

Fig 1: Water Pump Replacement Components With Torque Specifications
GTY456071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE WATER PUMP ASSEMBLY *2 V-RIBBED BELT TENSIONER ASSEMBLY
*3 GASKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
