Removal [08/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. DRAIN ENGINE COOLANT

    See step  1

  2. REMOVE WATER INLET

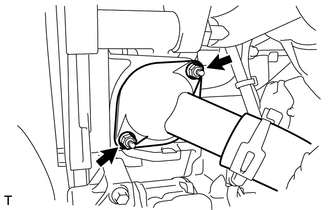

    1. Remove the 2 nuts and water inlet.
      GTY433635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE THERMOSTAT

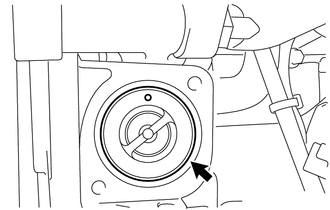

    1. Remove the thermostat.
      GTY426285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the gasket from the thermostat.
