Components [08/2013 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

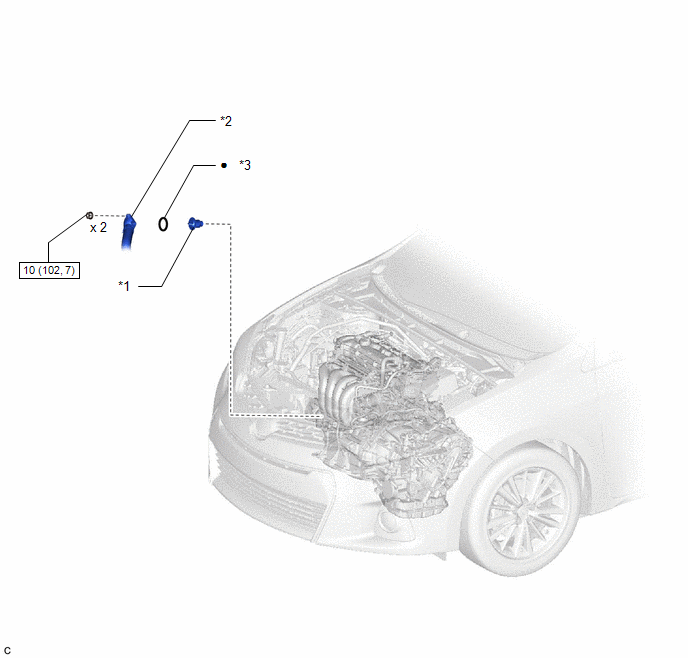

Fig 1: Thermostat Replacement Components With Torque Specifications
GTY436433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 THERMOSTAT *2 WATER INLET
*3 GASKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
