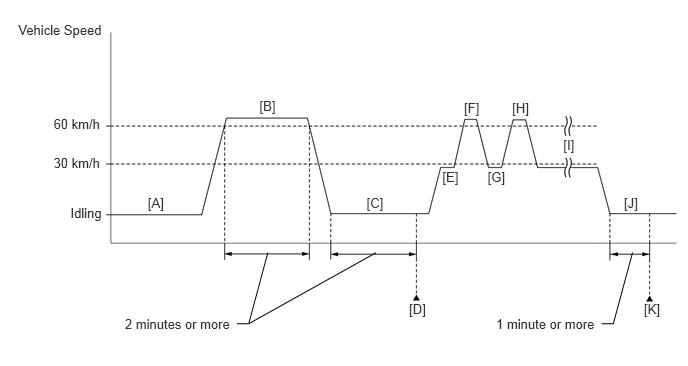

Confirmation Driving Pattern
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON.
- Turn the Techstream on.
- Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [A].
HINT:
The A/C switch and all accessory switches should be off and the shift lever should be in P or N.
- Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
- Drive the vehicle at 60 km/h (37 mph) or higher for 2 minutes or more [B].WARNING:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
HINT:
It is acceptable to turn electrical loads on while driving.
- Idle the engine for 2 minutes or more [C].
HINT:
The A/C switch and all accessory switches should be off and the shift lever should be in P or N.
- Enter the following menus: Powertrain / Engine and ECT / Trouble Codes [D].
- Read the pending DTCs.
HINT:
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.
- Drive the vehicle at less than 30 km/h (19 mph) for 5 seconds or more [E].WARNING:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
- Accelerate the vehicle from 30 to 60 km/h (19 to 37 mph) over a period of approximately 10 to 20 seconds.WARNING:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
HINT:
Refer to the values of mass air flow and engine speed in Typical Enabling Conditions before accelerating the vehicle from 30 to 60 km/h (19 to 37 mph).
- Drive the vehicle at 60 km/h (37 mph) or more for 5 seconds or more [F].WARNING:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
- Drive the vehicle at less than 30 km/h (19 mph) for 5 seconds or more [G].WARNING:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
- Accelerate the vehicle from 30 to 60 km/h (19 to 37 mph) over a period of approximately 10 to 20 seconds.WARNING:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
HINT:
Refer to the values of mass air flow and engine speed in Typical Enabling Conditions before accelerating the vehicle from 30 to 60 km/h (19 to 37 mph).
- Drive the vehicle at 60 km/h (37 mph) or more for 5 seconds or more [H].WARNING:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
- Repeat steps [G] and [H] above at least 2 times [I].
- Idle the engine for 1 minute or more [J].
HINT:
The A/C switch and all accessory switches should be off and the shift lever should be in P or N.
- Enter the following menus: Powertrain / Engine and ECT / Trouble Codes [K].
- Read the pending DTCs.
HINT:
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.
- Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
- Input the DTC: P219A, P219C, P219D, P219E or P219F.
- Check the DTC judgment result.
Techstream Display Description NORMAL - DTC judgment completed
- System normal
ABNORMAL - DTC judgment completed
- System abnormal
INCOMPLETE - DTC judgment not completed
- Perform driving pattern after confirming DTC enabling conditions
N/A - Unable to perform DTC judgment
- Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit
HINT:
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows INCOMPLETE, perform the confirmation driving pattern and check the judgment result again.
- If the judgment result shows N/A, perform the following procedure.
- If no pending DTC is output, perform a universal trip and check for permanent DTCs.
Refer to DTC CHECK / CLEAR [08/2013 - ]
HINT:
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.
