Section 24 (Engine Control System (2ZR-FAE) - Diagnostic Codes (7 Of 8) (Model Code: ZRE172))
>>
SFI System
>>
DTC P0102, P0103; Mass Air Flow Circuit Low [08/2016 - ]
>>

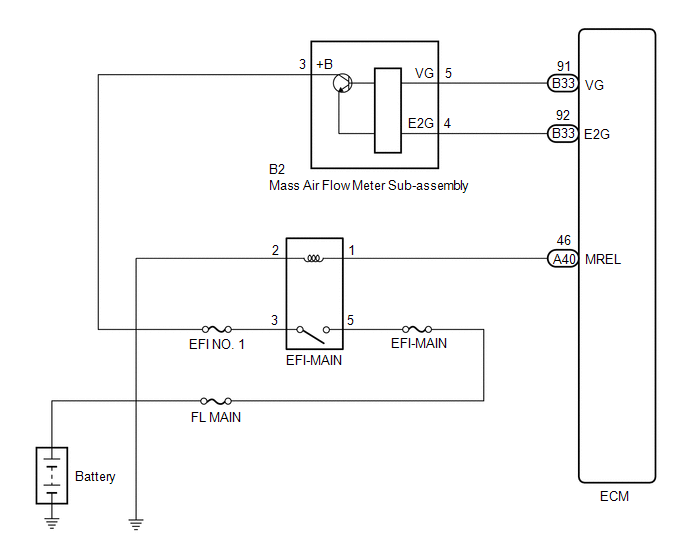

Wiring Diagram
DTC P0102, P0103; Mass Air Flow Circuit Low [08/2016 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
