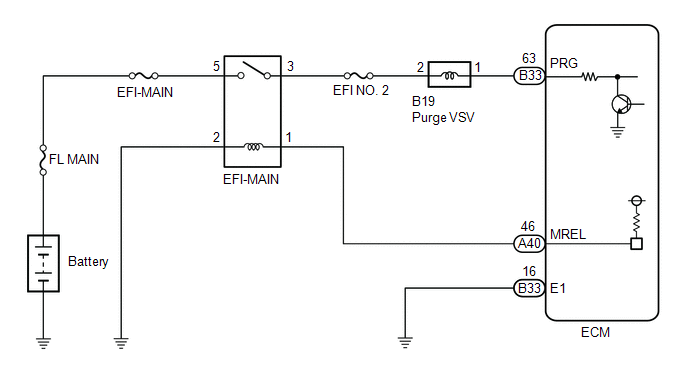

DTC P0443: Evaporative Emission Control System Purge Control Valve Circuit [08/2016 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY447888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
