Removal [08/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [08/2015 - 08/2016] Refer to PRECAUTION [08/2016 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [08/2015 - 08/2016] Refer to INITIALIZATION [08/2016 - 08/2017] Refer to INITIALIZATION [08/2017 - ]

  3. REMOVE ENGINE UNDER COVER LH

    Refer to PROCEDURE - Step 6 Refer to PROCEDURE - Step 6

  4. REMOVE ENGINE UNDER COVER RH

    Refer to PROCEDURE - Step 7 Refer to PROCEDURE - Step 7

  5. REMOVE STARTER ASSEMBLY

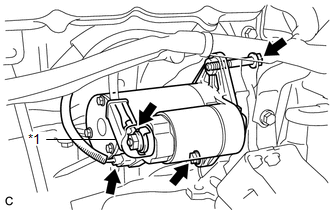

    1. Open the terminal cap.
      GTY540952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Terminal Cap
    2. Remove the nut and disconnect terminal 30.
    3. Disconnect the starter assembly connector.
    4. Remove the 2 bolts and starter assembly.
