Removal [08/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE STEERING COLUMN ASSEMBLY

    Refer to REMOVAL [08/2013 - 04/2014] Refer to REMOVAL [04/2014 - 08/2015] Refer to REMOVAL [08/2015 - 08/2016] Refer to REMOVAL [08/2016 - 08/2017] Refer to REMOVAL [08/2017 - ]

  2. REMOVE UPPER STEERING COLUMN BRACKET WITH SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. REMOVE IGNITION OR STARTER SWITCH ASSEMBLY

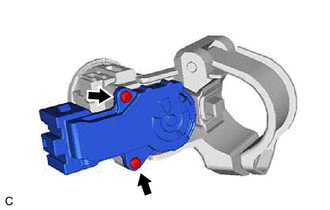

    1. Remove the 2 screws and ignition or starter switch assembly from the upper steering column bracket assembly.
      GTY452309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
