Section 20 (SFI System (2ZR-FAE) - Diagnostics - Circuit Tests (Model Code: ZRE172))
>>
SFI System
>>
Circuit Tests
>>
MIL Circuit [08/2013 - ]
>>

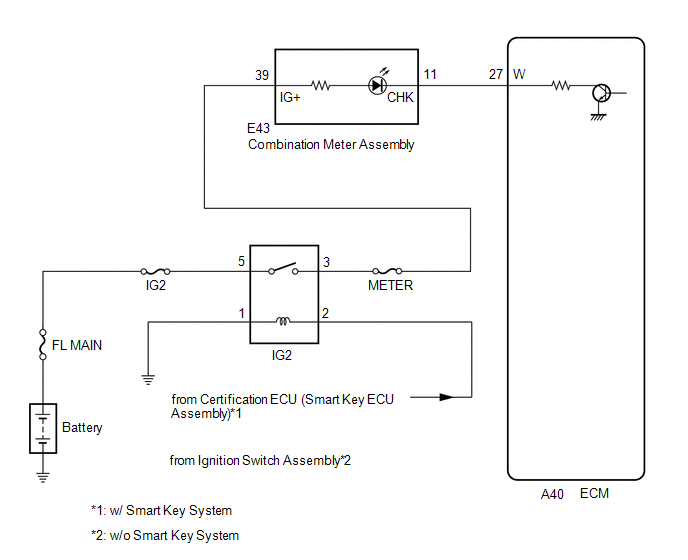

Wiring Diagram
MIL Circuit [08/2013 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
