Components [08/2013 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

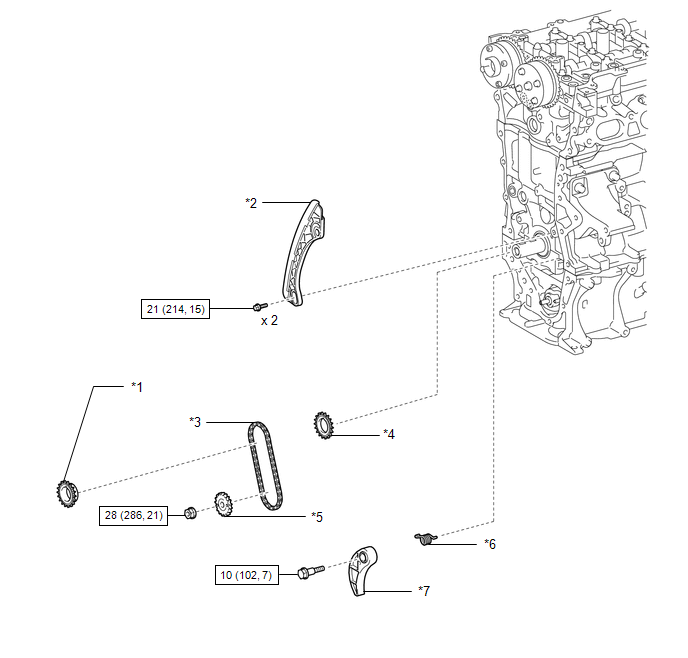

Fig 1: Oil Pump Replacement Components With Torque Specifications (1 Of 3)
GTY435494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CRANKSHAFT TIMING SPROCKET *2 NO. 1 CHAIN VIBRATION DAMPER
*3 NO. 2 CHAIN SUB-ASSEMBLY *4 OIL PUMP DRIVE GEAR
*5 OIL PUMP DRIVE SHAFT GEAR *6 SPRING
*7 CHAIN TENSIONER PLATE - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

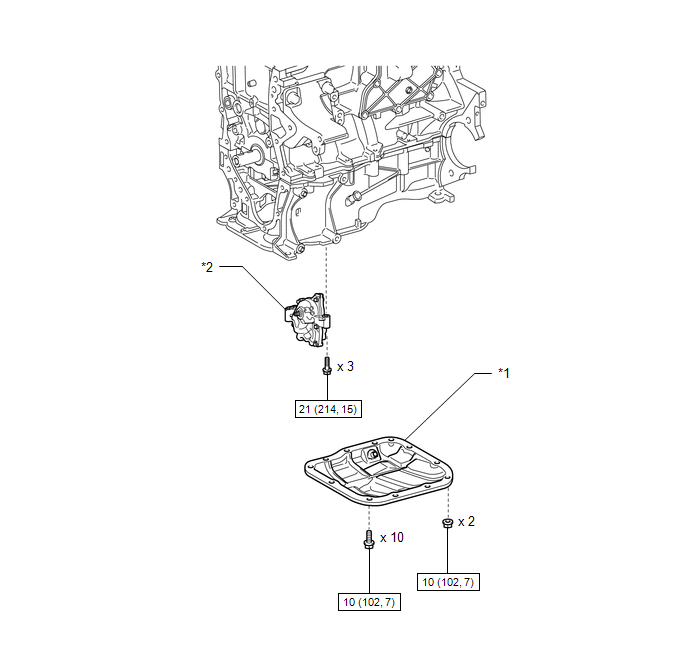

Fig 1: Oil Pump Replacement Components With Torque Specifications (2 Of 3)
GTY423576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 2 OIL PAN SUB-ASSEMBLY *2 OIL PUMP ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part


Fig 1: Oil Pump Replacement Components With Torque Specifications (3 Of 3)
GTY440075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 OIL PUMP RELIEF VALVE SPRING *2 OIL PUMP RELIEF VALVE
*3 OIL PUMP RELIEF VALVE PLUG *4 OIL PUMP BODY
*5 OIL PUMP DRIVEN ROTOR *6 OIL PUMP COVER SUB-ASSEMBLY
*7 OIL PUMP DRIVE ROTOR - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
