Components [08/2013 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

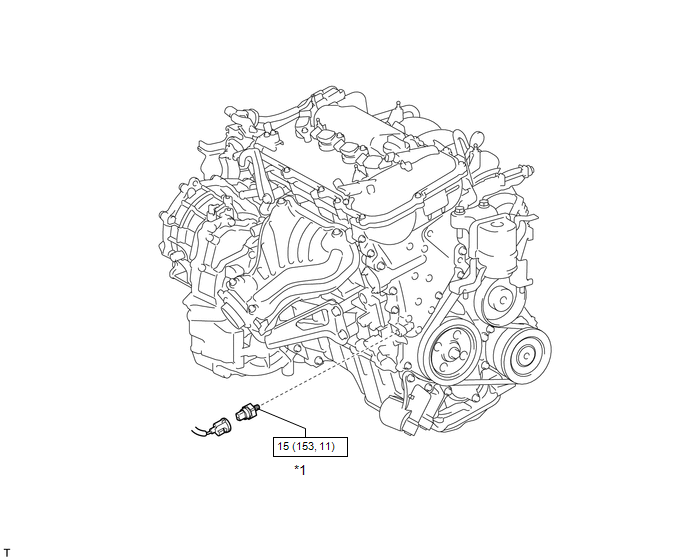

Fig 1: Oil Pressure Switch Replacement Components With Torque Specifications
GTY441154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE OIL PRESSURE SWITCH ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque * Precoated part
