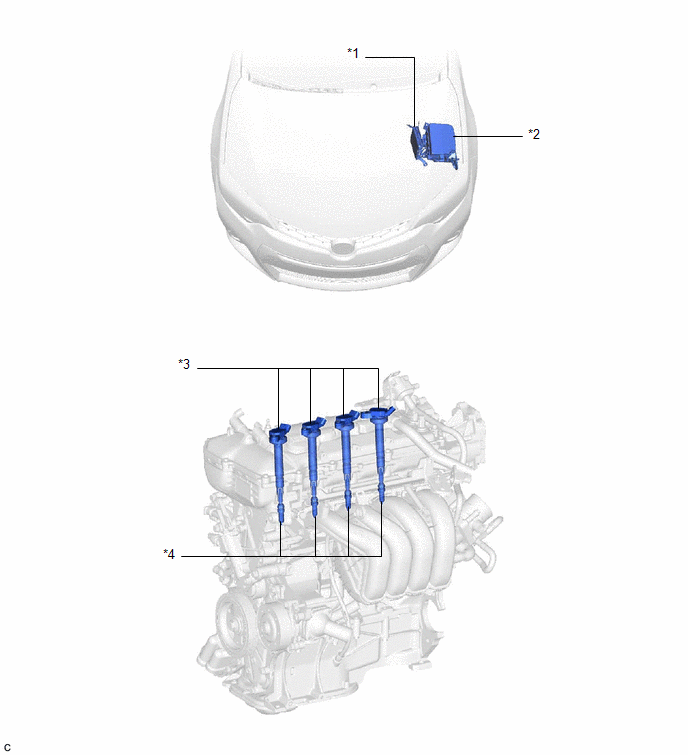

Parts Location [08/2013 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
ECM |
*2 |
ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY
- IGT/INJ RELAY
- INJ FUSE |
| *3 |
IGNITION COIL ASSEMBLY |
*4 |
SPARK PLUG |
