On-Vehicle Inspection [08/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSPECT INTAKE SYSTEM

    HINT:

    Perform "Inspection After Repair" after repairing vacuum leaks in the intake system.

    Refer to INITIALIZATION [08/2013 - 08/2016] Refer to INITIALIZATION [08/2016 - ]

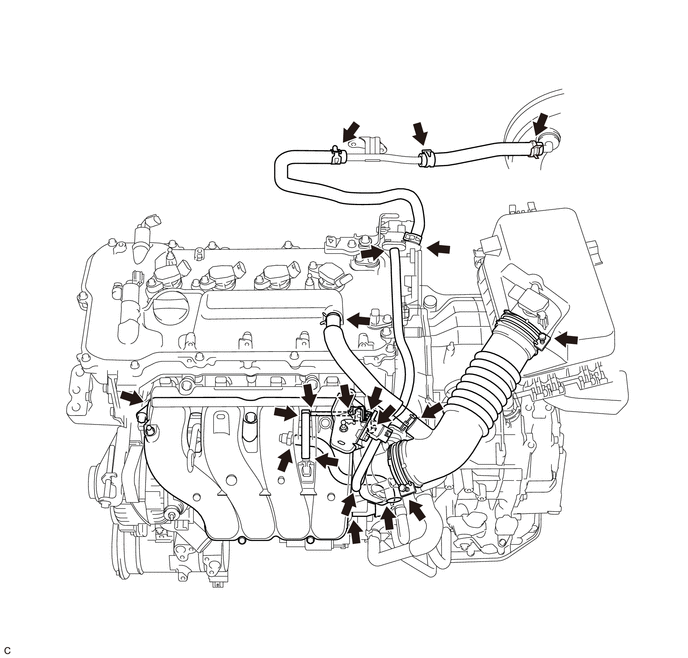

    1. Check that there are no vacuum leaks at the points shown in the illustration.
      GTY436042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. PERFORM INITIALIZATION
    1. Perform "Inspection After Repair" after repairing vacuum leaks in the intake system.

      Refer to INITIALIZATION [08/2013 - 08/2016] Refer to INITIALIZATION [08/2016 - ]
