DTC P1603, P1605; Engine Stall History [08/2016 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. CHECK FOR ANY OTHER DTCS OUTPUT
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
    5. Read the DTCs.

      Powertrain > Engine and ECT > Trouble Codes

      Result

      Result Proceed to
      Only DTC P1603 and/or P1605 is output A
      DTCs other than P1603 and/or P1605 are output B

      HINT:

      If any DTCs other than P1603 or P1605 are output, troubleshoot those DTCs first.

    Result:  2

    B

    GO TO DTC CHART:  DIAGNOSTIC TROUBLE CODE CHART [08/2016 - ]

    Result:  1

    A

    See step  2

  2. READ FREEZE FRAME DATA (IMMOBILISER FUEL CUT)
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored.

      Refer to FREEZE FRAME DATA [08/2016 - ]

      OK

      Immobiliser Fuel Cut is OFF.

      Result

      Result Proceed to
      NG A
      OK B

    Result:  2

    B

    See step  4

    Result:  1

    A

    See step  3

  3. CHECK IMMOBILISER SYSTEM
    1. Connect the Techstream to the DLC3.
    2. Start the engine.
    3. Idle the engine.
    4. Turn the Techstream on.
    5. Enter the following menus: Powertrain / Engine and ECT / Data List / Immobiliser Communication and Immobiliser Fuel Cut.

      Powertrain > Engine and ECT > Data List

      Tester Display
      Immobiliser Communication
      Immobiliser Fuel Cut
    6. Check the Data List indication.

      OK

      Data List Item Techstream Display
      Immobiliser Communication ON
      Immobiliser Fuel Cut OFF

      Result

      Result Proceed to
      OK A
      NG (w/ smart key system) B
      NG (w/o smart key system) C

    Result:  2

    B

    CHECK IMMOBILISER SYSTEM. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [08/2016 - ]

    Result:  3

    C

    CHECK IMMOBILISER SYSTEM. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [08/2016 - ]

    Result:  1

    A

    See step  4

  4. READ FREEZE FRAME DATA
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored.

      Refer to FREEZE FRAME DATA [08/2016 - ]

      Result

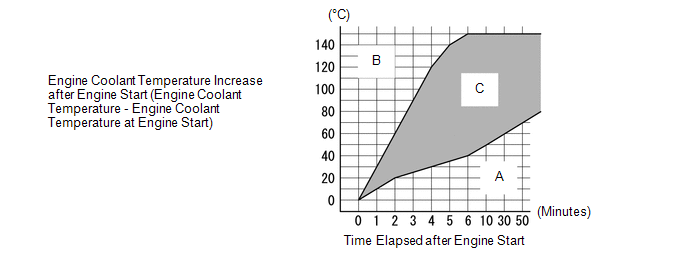

      Problem Symptom Freeze Frame Data Item for DTC P1605 Suspected Area Proceed to
      Closed Throttle Position SW Engine Speed Total of Short FT #1 and Long FT #1
      When idling or decelerating, engine speed slowly decreases and engine stalls All 5 sets of freeze frame data are ON Decreases slowly*1 All 5 sets of freeze frame data are 15% or more*2
      • Air suction
      • Sensor malfunction (value from sensor too lean)
      • Fuel supply problem
      		 A
      At least 1 of the 5 sets of freeze frame data is -15% or less*3 Sensor malfunction (value from sensor too rich) B
      All 5 sets of freeze frame data are from -15% to 15%
      • Intake air volume insufficient
      • Ignition timing incorrect
      		 C
      When idling or decelerating, engine speed rapidly decreases and engine stalls Decreases rapidly*1 -
      • Injection stoppage, ignition stoppage
      • Load from external parts
      		 D
      When accelerating or driving at constant speed and engine stalls*4 At least one is OFF - -
      • Sensor malfunction
      • Injection stoppage, ignition stoppage
      • Fuel supply problem
      		 E
      GTY362864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • *1: A rapid decrease in engine speed may have been caused by an electrical malfunction in the shared wiring of all or multiple cylinders, an increase in load from external parts, etc. The engine speed is considered to have decreased rapidly if either of the following conditions applies.

        Otherwise, the engine speed is considered to have decreased slowly.

        (a) In the freeze frame data, the decrease in engine speed from #3 to #5 is 400 rpm or higher.

        (b) In the freeze frame data, the engine speed at #5 is 120 rpm or less.

      • If the vehicle speed is 5 km/h (3 mph) or less and the difference between the Engine Speed and SPD (NT) is 100 rpm or less, inspect the CVT. (Depending on the rate of vehicle deceleration, the engine speed may have decreased due to the CVT lock-up release being late.) (for CVT Models)
      • *2: When a DTC is stored, feedback compensation increases because the air fuel ratio is determined to be lean.
      • *3: When a DTC is stored, feedback compensation decreases because the air fuel ratio is determined to be rich.
      • *4: This item should be checked when DTC P1603 is output and is not necessary to check when only P1605 is output.

    Result:  6

    B

    See step  38

    Result:  7

    C

    See step  53

    Result:  8

    D

    See step  66

    Result:  9

    E

    See step  72

    Result:  1

    A

    See step  5

  5. CHECK INTAKE SYSTEM
    1. Check for air leakage in the intake system [vacuum hose disconnection, cracks, damaged gaskets, etc.].

      Refer to ON-VEHICLE INSPECTION [08/2013 - ]

      HINT:

      • If the accelerator pedal is released after racing the engine, the inspection is easier to perform because the vacuum inside the intake pipes increases and the air suction noise becomes louder.
      • If Short FT #1 and Long FT #1 are largely different from the normal values when idling (the intake air volume is small) and almost the same as the normal values when racing the engine (the intake air volume is high), air leakage may be present.

      OK

      There is no air suction.

      HINT:

      Perform "Inspection After Repair" after repairing or replacing the intake system.

      Refer to INITIALIZATION [08/2016 - ]

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR OR REPLACE INTAKE SYSTEM

    Result:  1

    OK

    See step  6

  6. CHECK PURGE VSV
    1. Disconnect the fuel vapor feed hose (on the canister side) of the purge VSV.
      GTY429402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Purge VSV
      *2 Fuel Vapor Feed Hose (to Canister)
    2. Start the engine.
    3. Idle the engine.
    4. Disconnect the connector of the purge VSV.
    5. Check if air flows through the purge VSV.

      OK

      Air does not flow.

      HINT:

      When this inspection is performed, the MIL may illuminate. After finishing the inspection, check and clear the DTC.

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPLACE PURGE VSV. Refer to  REMOVAL [08/2013 - ]

    Result:  1

    OK

    See step  7

  7. READ FREEZE FRAME DATA
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored.

      Refer to FREEZE FRAME DATA [08/2016 - ]

      Result

      Freeze Frame Data Item for DTC P1605 Result Suspected Area Proceed to
      Stop Light Switch At least 1 of the 5 sets of freeze frame data is ON Air suction from brake booster assembly A
      All 5 sets of freeze frame data are OFF - B

    Result:  2

    B

    See step  10

    Result:  1

    A

    See step  8

  8. READ VALUE USING TECHSTREAM (SHORT FT #1)
    1. Connect the Techstream to the DLC3.
      GTY381631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Start the engine and warm it up until the engine coolant temperature stabilizes.

      HINT:

      The A/C switch and all accessory switches should be off.

    5. Idle the engine.
    6. Using the Techstream, read the value of Short FT #1 in the Data List while depressing the brake pedal.

      Powertrain > Engine and ECT > Data List

      Tester Display
      Short FT #1

      Standard

      Short FT #1 changes by 10% or less.

      HINT:

      When air leakage from the brake booster assembly is present, the feedback compensation increases because the air fuel ratio becomes lean.

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    INSPECT BRAKE BOOSTER ASSEMBLY. Refer to  ON-VEHICLE INSPECTION [08/2013 - ]

    Result:  1

    OK

    See step  9

  9. PERFORM DRIVE TEST
    1. Connect the Techstream to the DLC3.
    2. Start the engine and warm it up until the engine coolant temperature stabilizes.

      HINT:

      The A/C switch and all accessory switches should be off.

    3. Idle the engine.
    4. Turn the Techstream on.
    5. Using the Techstream, read the value of Short FT #1 and Long FT #1 in the Data List.

      Powertrain > Engine and ECT > Data List

      Tester Display
      Short FT #1
      Long FT #1

      Standard

      Data List Condition Specified Condition
      Short FT #1 + Long FT #1 The conditions of the vehicle are matched to those present when the problem occurs -15 to 15%

      Result

      Proceed to
      OK
      NG

    Result:  3

    NG

    INSPECT BRAKE BOOSTER ASSEMBLY. Refer to  ON-VEHICLE INSPECTION [08/2013 - ]

    Result:  1

    OK

    See step  10

  10. CHECK IGNITION SYSTEM
    1. Perform ignition system On-vehicle Inspection.

      Refer to ON-VEHICLE INSPECTION [08/2013 - ]

      HINT:

      Perform "Inspection After Repair" after repairing or replacing the ignition system.

      Refer to INITIALIZATION [08/2016 - ]

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA

    Result:  1

    OK

    See step  11

  11. READ FREEZE FRAME DATA
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored.

      Refer to FREEZE FRAME DATA [08/2016 - ]

      Result

      Freeze Frame Data Item for DTC P1605 Result Suspected Area Proceed to
      Calculate Load Below 90% of the current value of the vehicle*1 Mass air flow meter sub-assembly A
      AFS Voltage B1S1 3.3 V or higher*2
      • Air fuel ratio sensor
      • Wire harness or connector
      		 B

      HINT:

      • *1: If the mass air flow meter sub-assembly is malfunctioning and incorrectly measures the intake air volume to be less than the actual volume, the freeze frame data will show a low engine load value.
      • *2: If the air fuel ratio sensor is malfunctioning and constantly outputs a value indicating the air fuel ratio is lean, the actual air fuel ratio will become rich and the engine may stall.

    Result:  2

    B

    See step  15

    Result:  1

    A

    See step  12

  12. CHECK MASS AIR FLOW METER SUB-ASSEMBLY
    1. Remove the mass air flow meter sub-assembly.

      Refer to REMOVAL [08/2013 - ]

    2. Check for foreign matter in the air flow passage of the mass air flow meter sub-assembly.

      Result

      Result Proceed to
      Visible foreign matter is not present A
      Visible foreign matter is present B

      HINT:

      Perform "Inspection After Repair" after replacing the mass air flow meter sub-assembly.

      Refer to INITIALIZATION [08/2016 - ]

    Result:  2

    B

    REPLACE MASS AIR FLOW METER SUB-ASSEMBLY. Refer to  REMOVAL [08/2013 - ]

    Result:  1

    A

    See step  13

  13. CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER SUB-ASSEMBLY - ECM)
    1. Check the harnesses and connectors, referring to DTC P0102 inspection procedure.

      Refer to PROCEDURE - Step 3

      HINT:

      • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
      • Make sure there is not an excessive amount of force applied to the wire harness.

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:  1

    OK

    See step  14

  14. PERFORM DRIVE TEST
    1. Connect the Techstream to the DLC3.
    2. Start the engine and warm it up until the engine coolant temperature stabilizes.

      HINT:

      The A/C switch and all accessory switches should be off.

    3. Idle the engine.
    4. Turn the Techstream on.
    5. Using the Techstream, read the value of Calculate Load in the Data List.

      Powertrain > Engine and ECT > Data List

      Tester Display
      Calculate Load

      Standard

      Data List Specified Condition
      Calculate Load 90 to 110% of the normal value of the vehicle

      Result

      Result Proceed to
      Abnormal A
      Normal B

      HINT:

      Perform "Inspection After Repair" after replacing the mass air flow meter sub-assembly.

      Refer to INITIALIZATION [08/2016 - ]

    Result:  1

    A

    REPLACE MASS AIR FLOW METER SUB-ASSEMBLY. Refer to  REMOVAL [08/2013 - ]

    Result:  2

    B

    See step  18

  15. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE INJECTION VOLUME FOR A/F SENSOR)
    1. Connect the Techstream to the DLC3.
      GTY379177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Start the engine, turn off all accessory switches and warm up the engine until the engine coolant temperature stabilizes.

      HINT:

      The A/C switch and all accessory switches should be off.

    3. Idle the engine.
    4. Turn the Techstream on.
    5. Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Injection Volume for A/F Sensor / Gas AF Control / AFS Voltage B1S1.

      Powertrain > Engine and ECT > Active Test

      Active Test Display
      Control the Injection Volume for A/F Sensor
      Data List Display
      AFS Voltage B1S1
    6. Read the output voltage from the air fuel ratio sensor when increasing and decreasing the fuel injection volume.

      Standard

      Techstream Display Specified Condition
      Control the Injection Volume for A/F Sensor (12.5%) Air fuel ratio sensor output voltage is below 3.1 V
      Control the Injection Volume for A/F Sensor (-12.5%) Air fuel ratio sensor output voltage is higher than 3.4 V

      Result

      Result Proceed to
      Abnormal A
      Normal B

      HINT:

      The air fuel ratio sensor has an output delay of a few seconds and the heated oxygen sensor has a maximum output delay of approximately 20 seconds.

    Result:  2

    B

    See step  18

    Result:  1

    A

    See step  16

  16. CHECK TERMINAL VOLTAGE (POWER SOURCE OF AIR FUEL RATIO SENSOR)
    1. Check the harnesses and connectors, referring to DTC P0031 inspection procedure.

      Refer to PROCEDURE - Step 2

      HINT:

      • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
      • Make sure there is not an excessive amount of force applied to the wire harness.

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR AIR FUEL RATIO SENSOR POWER SOURCE CIRCUIT. Refer to  PROCEDURE - Step 2

    Result:  1

    OK

    See step  17

  17. CHECK HARNESS AND CONNECTOR (AIR FUEL RATIO SENSOR - ECM)
    1. Check the harnesses and connectors, referring to DTC P2237 inspection procedure.

      Refer to PROCEDURE - Step 1

      HINT:

      • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
      • Make sure there is not an excessive amount of force applied to the wire harness.

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:  1

    OK

    See step  18

  18. READ FREEZE FRAME DATA
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored.

      Refer to FREEZE FRAME DATA [08/2016 - ]

      Result

      Freeze Frame Data Item for DTC P1605 Result Proceed to
      Initial Engine Coolant Temp, Ambient Temp for A/C, Initial Intake Air Temp Difference in temperature between each item is less than 10°C (18°F)*1 A
      Difference in temperature between each item is 10°C (18°F) or higher*2 B

      HINT:

      • *1: A long time had elapsed after stopping the engine.
      • *2: A long time had not elapsed after stopping the engine.

    Result:  2

    B

    See step  21

    Result:  1

    A

    See step  19

  19. READ FREEZE FRAME DATA
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored.

      Refer to FREEZE FRAME DATA [08/2016 - ]

      GTY382225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      Freeze Frame Data Item for DTC P1605 Result Suspected Area Proceed to
      Initial Engine Coolant Temp, Coolant Temp, Engine Run Time Range A
      • Engine coolant temperature sensor
      • Thermostat
      		 A
      Range B Engine coolant temperature sensor B
      Range C - C

      HINT:

      This step is not directly related to engine stall.

    Result:  2

    B

    See step  22

    Result:  3

    C

    See step  24

    Result:  1

    A

    See step  20

  20. INSPECT THERMOSTAT
    1. Inspect the thermostat.

      Refer to INSPECTION [08/2013 - ]

      Result

      Result Proceed to
      Abnormal A
      Normal B

    Result:  1

    A

    REPLACE THERMOSTAT. Refer to  REMOVAL [08/2013 - ]

    Result:  2

    B

    See step  22

  21. READ FREEZE FRAME DATA
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored.

      Refer to FREEZE FRAME DATA [08/2016 - ]

      Result

      Freeze Frame Data Item for DTC P1605 Result Suspected Area Proceed to
      Coolant Temp 120°C (248°F) or higher Engine coolant temperature sensor A
      Engine coolant temperature is lower than ambient temperature* by 15°C (27°F) or higher Engine coolant temperature sensor
      Values are other than above - B

      HINT:

      *: Use an actual ambient temperature estimated from the Initial Intake Air, Ambient Temp for A/C, and (if possible) the weather when the DTC was detected.

    Result:  2

    B

    See step  24

    Result:  1

    A

    See step  22

  22. INSPECT ENGINE COOLANT TEMPERATURE SENSOR
    1. Inspect the engine coolant temperature sensor.

      Refer to INSPECTION [08/2013 - ]

      HINT:

      Perform "Inspection After Repair" after replacing the engine coolant temperature sensor.

      Refer to INITIALIZATION [08/2016 - ]

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPLACE ENGINE COOLANT TEMPERATURE SENSOR. Refer to  REMOVAL [08/2013 - ]

    Result:  1

    OK

    See step  23

  23. CHECK HARNESS AND CONNECTOR (ENGINE COOLANT TEMPERATURE SENSOR - ECM)
    1. Disconnect the engine coolant temperature sensor connector.
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      B4-2 - B33-93 (THW) Always Below 1 Ω
      B4-1 - B33-94 (ETHW) Always Below 1 Ω
      B4-2 or B33-93 (THW) - Body ground Always 10 kΩ or higher

      HINT:

      • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
      • Make sure there is not an excessive amount of force applied to the wire harness.

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:  1

    OK

    See step  24

  24. READ FREEZE FRAME DATA
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored.

      Refer to FREEZE FRAME DATA [08/2016 - ]

      Result

      Freeze Frame Data Item for DTC P1605 Result Suspected Area Proceed to
      EVAP (Purge) VSV At least 1 of the 5 sets of freeze frame data is not 0% Purge VSV A
      All 5 sets of freeze frame data are 0% - B

      HINT:

      If the purge VSV is stuck closed, air fuel ratio compensation by the purge VSV is incorrectly adjusted, and then the air fuel ratio becomes lean and the engine may stall.

    Result:  2

    B

    See step  33

    Result:  1

    A

    See step  25

  25. PERFORM ACTIVE TEST USING TECHSTREAM (ACTIVATE THE VSV FOR EVAP CONTROL)
    1. Disconnect the fuel vapor feed hose (on the canister side) of the purge VSV.
      GTY434672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Purge VSV
      *2 Fuel Vapor Feed Hose (to Canister)
    2. Connect the Techstream to the DLC3.
    3. Start the engine.
    4. Turn the Techstream on.
    5. Enter the following menus: Powertrain / Engine and ECT / Active Test / Activate the VSV for Evap Control.

      Powertrain > Engine and ECT > Active Test

      Tester Display
      Activate the VSV for Evap Control
    6. When purge VSV is operated using the Techstream, check whether the port of the purge VSV applies suction your finger.

      OK

      Techstream Operation Specified Condition
      ON Purge VSV port applies suction to finger
      OFF Purge VSV port applies no suction to finger

      Result

      Result Proceed to
      NG A
      OK B

      HINT:

      Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.

    Result:  2

    B

    See step  33

    Result:  1

    A

    See step  26

  26. INSPECT PURGE VSV
    1. Inspect the purge VSV.

      Refer to INSPECTION [08/2013 - ]

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPLACE PURGE VSV. Refer to  REMOVAL [08/2013 - ]

    Result:  1

    OK

    See step  27

  27. CHECK TERMINAL VOLTAGE (POWER SOURCE OF PURGE VSV)
    1. Check the harness and connectors.

      HINT:

      • Refer to DTC P0443 inspection procedure for Mexico Models.

        Refer to PROCEDURE - Step 3

      • Refer to EVAP System inspection procedure for except Mexico Models.

        Refer to PROCEDURE - Step 15

      • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
      • Make sure there is not an excessive amount of force applied to the wire harness.

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR PURGE VSV POWER SOURCE CIRCUIT

    Result:  1

    OK

    See step  28

  28. CHECK HARNESS AND CONNECTOR (PURGE VSV - ECM)
    1. Check the harness and connectors.

      HINT:

      • Refer to DTC P0443 inspection procedure for Mexico Models.

        Refer to PROCEDURE - Step 4

      • Refer to EVAP System inspection procedure for except Mexico Models.

        Refer to PROCEDURE - Step 16

      • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
      • Make sure there is not an excessive amount of force applied to the wire harness.

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:  1

    OK

    See step  29

  29. CLEAR DTC
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Clear the DTCs.

      Powertrain > Engine and ECT > Clear DTCs

      Result

      Proceed to
      NEXT

    Result:  1

    NEXT

    See step  30

  30. READ VALUE USING TECHSTREAM (EVAP (PURGE) VSV)
    1. Connect the Techstream to the DLC3.
    2. Start the engine and warm it up until the engine coolant temperature stabilizes.

      HINT:

      The A/C switch and all accessory switches should be off.

    3. Idle the engine for 15 minutes or more.
    4. Turn the Techstream on.
    5. Using the Techstream, read the value of EVAP (Purge) VSV in the Data List.

      Powertrain > Engine and ECT > Data List

      Tester Display
      EVAP (Purge) VSV

      Standard

      Data List Specified Condition
      EVAP (Purge) VSV Value other than 0% is displayed

      Result

      Result Proceed to
      Abnormal A
      Normal B

    Result:  2

    B

    CHECK FOR INTERMITTENT PROBLEMS. Refer to  CHECK FOR INTERMITTENT PROBLEMS [08/2013 - ]

    Result:  1

    A

    See step  31

  31. PERFORM ACTIVE TEST USING TECHSTREAM (ACTIVATE THE VSV FOR EVAP CONTROL)
    1. Disconnect the fuel vapor feed hose (on the canister side) of the purge VSV.
      GTY434672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Purge VSV
      *2 Fuel Vapor Feed Hose (to Canister)
    2. Connect the Techstream to the DLC3.
    3. Start the engine.
    4. Turn the Techstream on.
    5. Enter the following menus: Powertrain / Engine and ECT / Active Test / Activate the VSV for Evap Control.

      Powertrain > Engine and ECT > Active Test

      Tester Display
      Activate the VSV for Evap Control
    6. When purge VSV is operated using the Techstream, check whether the port of the purge VSV applies suction your finger.

      OK

      Techstream Operation Specified Condition
      ON Purge VSV port applies suction to finger
      OFF Purge VSV port applies no suction to finger

      Result

      Result Proceed to
      NG A
      OK B

      HINT:

      Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.

    Result:  2

    B

    CHECK FOR INTERMITTENT PROBLEMS. Refer to  CHECK FOR INTERMITTENT PROBLEMS [08/2013 - ]

    Result:  1

    A

    See step  32

  32. CHECK CONNECTOR CONNECTION CONDITION (ECM)
    1. Check the ECM connector connection condition.

      HINT:

      • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
      • Make sure there is not an excessive amount of force applied to the wire harness.

      Result

      Proceed to
      OK
      NG

    Result:  1

    OK

    REPLACE ECM. Refer to  REMOVAL [08/2016 - ]

    Result:  2

    NG

    RECONNECT CONNECTOR CORRECTLY

  33. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE FUEL PUMP / SPEED)
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Fuel Pump / Speed.

      Powertrain > Engine and ECT > Active Test

      Tester Display
      Control the Fuel Pump / Speed
    5. Check whether the fuel pump operating sound occurs when performing the Active Test on the Techstream.

      OK

      Techstream Operation Specified Condition
      ON Operating sound heard
      OFF Operating sound not heard

      Result

      Result Proceed to
      Abnormal A
      Normal B

      HINT:

      • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
      • While performing the Active Test, make sure that there is no fuel leakage from the pipes, no signs that fuel has leaked, and no fuel smell.
      • If the fuel pump operating noise is abnormal, proceed to step 34.

    Result:  2

    B

    See step  35

    Result:  1

    A

    See step  34

  34. INSPECT FUEL PUMP
    1. Inspect the fuel pump.

      Refer to INSPECTION [08/2013 - ]

      HINT:

      Perform "Inspection After Repair" after replacing the fuel pump.

      Refer to INITIALIZATION [08/2016 - ]

      Result

      Proceed to
      OK
      NG

    Result:  1

    OK

    CHECK FUEL PUMP CONTROL CIRCUIT. Refer to  Fuel Pump Control Circuit [08/2013 - ]

    Result:  2

    NG

    REPLACE FUEL PUMP. Refer to  REMOVAL [08/2016 - ]

  35. CHECK FUEL SYSTEM
    1. Check the fuel system.
      • Check the fuel pump operation.
      • Check the fuel leaks.
      • Check the fuel pressure.
      • Perform the Active Test [Control the All Cylinders Fuel Cut].

      HINT:

      For the fuel system On-vehicle Inspection, refer to the following procedures.

      Refer to ON-VEHICLE INSPECTION [08/2013 - ]

      Result

      Result Proceed to
      Abnormal A
      Normal B

    Result:  2

    B

    CHECK FOR INTERMITTENT PROBLEMS. Refer to  CHECK FOR INTERMITTENT PROBLEMS [08/2013 - ]

    Result:  1

    A

    See step  36

  36. CHECK FUEL SYSTEM
    1. Check for foreign matter such as iron particles around the fuel pump (fuel pump, fuel pump filter and inside the fuel tank), and for signs that the fuel pump was stuck.

      Result

      Result Proceed to
      There is no foreign matter and no signs that fuel pump was stuck A
      There is foreign matter or signs that fuel pump was stuck B

      HINT:

      If there is foreign matter such as iron particles around the fuel pump, fuel filter or inside the fuel tank, remove the foreign matter.

    Result:  2

    B

    REPAIR OR REPLACE FUEL SYSTEM

    Result:  1

    A

    See step  37

  37. CHECK FUEL SYSTEM
    1. Check the fuel system.
      • Check the fuel pump operation.
      • Check the fuel leaks.
      • Check the fuel pressure.
      • Perform the Active Test [Control the All Cylinders Fuel Cut].

      HINT:

      Result

      Proceed to
      OK
      NG

    Result:  1

    OK

    END

    Result:  2

    NG

    REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA

  38. CHECK IGNITION SYSTEM
    1. Perform ignition system On-vehicle Inspection.

      Refer to ON-VEHICLE INSPECTION [08/2013 - ]

      HINT:

      Perform "Inspection After Repair" after repairing or replacing the ignition system.

      Refer to INITIALIZATION [08/2016 - ]

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA

    Result:  1

    OK

    See step  39

  39. READ FREEZE FRAME DATA
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored.

      Refer to FREEZE FRAME DATA [08/2016 - ]

      Result

      Freeze Frame Data Item for DTC P1605 Result Suspected Area Proceed to
      Calculate Load 110% or more of the current value of the vehicle*1 Mass air flow meter sub-assembly A
      AFS Voltage B1S1 Below 3.3 V*2
      • Air fuel ratio sensor
      • Harness or connector
      		 B
      Both freeze frame data items listed above Values are other than above - C

      HINT:

      • *1: If the mass air flow meter sub-assembly is malfunctioning and incorrectly measures the intake air volume to be higher than the actual volume of air flowing through the intake manifold, the freeze frame data will show a high engine load value.
      • *2: As the air fuel ratio sensor output is low before the sensor warms up, the value at that time cannot be used for diagnosis. If the air fuel ratio sensor is malfunctioning and constantly outputs a value indicating the air fuel ratio is rich, the actual air fuel ratio will become lean and the engine may stall.

    Result:  2

    B

    See step  43

    Result:  3

    C

    See step  46

    Result:  1

    A

    See step  40

  40. INSPECT MASS AIR FLOW METER SUB-ASSEMBLY
    1. Remove the mass air flow meter sub-assembly.

      Refer to REMOVAL [08/2013 - ]

    2. Check for foreign matter in the air flow passage of the mass air flow meter sub-assembly.

      Result

      Result Proceed to
      Visible foreign matter is not present A
      Visible foreign matter is present B

      HINT:

      Perform "Inspection After Repair" after replacing the mass air flow meter sub-assembly.

      Refer to INITIALIZATION [08/2016 - ]

    Result:  2

    B

    REPLACE MASS AIR FLOW METER SUB-ASSEMBLY. Refer to  REMOVAL [08/2013 - ]

    Result:  1

    A

    See step  41

  41. CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER SUB-ASSEMBLY - ECM)
    1. Check the harnesses and connectors, referring to DTC P0102 inspection procedure.

      Refer to PROCEDURE - Step 3

      HINT:

      • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
      • Make sure there is not an excessive amount of force applied to the wire harness.

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:  1

    OK

    See step  42

  42. PERFORM DRIVE TEST
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Start the engine and warm it up until the engine coolant temperature stabilizes.

      HINT:

      The A/C switch and all accessory switches should be off.

    5. Idle the engine.
    6. Using the Techstream, read the value of Calculate Load in the Data List.

      Powertrain > Engine and ECT > Data List

      Tester Display
      Calculate Load

      Standard

      Data List Specified Condition
      Calculate Load 90 to 110% of the normal value of the vehicle

      HINT:

      Perform "Inspection After Repair" after replacing the mass air flow meter sub-assembly.

      Refer to INITIALIZATION [08/2016 - ]

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPLACE MASS AIR FLOW METER SUB-ASSEMBLY. Refer to  REMOVAL [08/2013 - ]

    Result:  1

    OK

    See step  43

  43. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE INJECTION VOLUME FOR A/F SENSOR)
    1. Connect the Techstream to the DLC3.
      GTY379177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Start the engine, turn off all accessory switches and warm up the engine until the engine coolant temperature stabilizes.

      HINT:

      The A/C switch and all accessory switches should be off.

    5. Idle the engine.
    6. Turn the Techstream on.
    7. Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Injection Volume for A/F Sensor / Gas AF Control / AFS Voltage B1S1.

      Powertrain > Engine and ECT > Active Test

      Active Test Display
      Control the Injection Volume for A/F Sensor
      Data List Display
      AFS Voltage B1S1
    8. Read the output voltage from the air fuel ratio sensor when increasing and decreasing the fuel injection volume.

      Standard

      Techstream Display Specified Condition
      Control the Injection Volume for A/F Sensor (12.5%) Air fuel ratio sensor output voltage is below 3.1 V
      Control the Injection Volume for A/F Sensor (-12.5%) Air fuel ratio sensor output voltage is higher than 3.4 V

      Result

      Result Proceed to
      Abnormal A
      Normal B

      HINT:

      The air fuel ratio sensor has an output delay of a few seconds and the heated oxygen sensor has a maximum output delay of approximately 20 seconds.

    Result:  2

    B

    See step  46

    Result:  1

    A

    See step  44

  44. CHECK TERMINAL VOLTAGE (POWER SOURCE OF AIR FUEL RATIO SENSOR)
    1. Check the harnesses and connectors, referring to DTC P0031 inspection procedure.

      Refer to PROCEDURE - Step 2

      HINT:

      • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
      • Make sure there is not an excessive amount of force applied to the wire harness.

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR AIR FUEL RATIO SENSOR POWER SOURCE CIRCUIT. Refer to  PROCEDURE - Step 2

    Result:  1

    OK

    See step  45

  45. CHECK HARNESS AND CONNECTOR (AIR FUEL RATIO SENSOR - ECM)
    1. Check the harnesses and connectors, referring to DTC P2237 inspection procedure.

      Refer to PROCEDURE - Step 1

      HINT:

      • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
      • Make sure there is not an excessive amount of force applied to the wire harness.

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:  1

    OK

    See step  46

  46. READ FREEZE FRAME DATA
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored.

      Refer to FREEZE FRAME DATA [08/2016 - ]

      Result

      Freeze Frame Data Item for DTC P1605 Result Proceed to
      Initial Engine Coolant Temp, Ambient Temp for A/C, Initial Intake Air Temp Difference in temperature between each item is less than 10°C (18°F)*1 A
      Difference in temperature between each item is 10°C (18°F) or higher*2 B

      HINT:

      • *1: A long time had elapsed after stopping the engine.
      • *2: A long time had not elapsed after stopping the engine.

    Result:  2

    B

    See step  49

    Result:  1

    A

    See step  47

  47. READ FREEZE FRAME DATA
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored.

      Refer to FREEZE FRAME DATA [08/2016 - ]

      GTY382225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      Freeze Frame Data Item for DTC P1605 Result Suspected Area Proceed to
      Initial Engine Coolant Temp, Coolant Temp, Engine Run Time Range A
      • Engine coolant temperature sensor
      • Thermostat
      		 A
      Range B Engine coolant temperature sensor B
      Range C - C

      HINT:

      This step is not directly related to engine stall.

    Result:  2

    B

    See step  50

    Result:  3

    C

    See step  80

    Result:  1

    A

    See step  48

  48. INSPECT THERMOSTAT
    1. Inspect the thermostat.

      Refer to INSPECTION [08/2013 - ]

      Result

      Result Proceed to
      Abnormal A
      Normal B

      HINT:

      This step is not directly related to engine stall.

    Result:  1

    A

    REPLACE THERMOSTAT. Refer to  REMOVAL [08/2013 - ]

    Result:  2

    B

    See step  50

  49. READ FREEZE FRAME DATA
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored.

      Refer to FREEZE FRAME DATA [08/2016 - ]

      Result

      Freeze Frame Data Item for DTC P1605 Result Suspected Area Proceed to
      Coolant Temp 120°C (248°F) or higher Engine coolant temperature sensor A
      Engine coolant temperature is lower than ambient temperature* by 15°C (27°F) or higher Engine coolant temperature sensor
      Values are other than above - B

      HINT:

      *: Use an actual ambient temperature estimated from the Initial Intake Air, Ambient Temp for A/C, and (if possible) the weather when the DTC was detected.

    Result:  2

    B

    See step  52

    Result:  1

    A

    See step  50

  50. INSPECT ENGINE COOLANT TEMPERATURE SENSOR
    1. Inspect the engine coolant temperature sensor.

      Refer to INSPECTION [08/2013 - ]

      HINT:

      Perform "Inspection After Repair" after replacing the engine coolant temperature sensor.

      Refer to INITIALIZATION [08/2016 - ]

      Result

      Result Proceed to
      Normal A
      Abnormal B

    Result:  2

    B

    REPLACE ENGINE COOLANT TEMPERATURE SENSOR. Refer to  REMOVAL [08/2013 - ]

    Result:  1

    A

    See step  51

  51. CHECK HARNESS AND CONNECTOR (ENGINE COOLANT TEMPERATURE SENSOR - ECM)
    1. Disconnect the engine coolant temperature sensor connector.
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      B4-2 - B33-93 (THW) Always Below 1 Ω
      B4-1 - B33-94 (ETHW) Always Below 1 Ω
      B4-2 or B33-93 (THW) - Body ground Always 10 kΩ or higher

      HINT:

      • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
      • Make sure there is not an excessive amount of force applied to the wire harness.

      Result

      Proceed to
      OK
      NG

    Result:  1

    OK

    CHECK FOR INTERMITTENT PROBLEMS. Refer to  CHECK FOR INTERMITTENT PROBLEMS [08/2013 - ]

    Result:  2

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  52. CLEAR DTC
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Clear the DTCs.

      Powertrain > Engine and ECT > Clear DTCs

      Result

      Proceed to
      NEXT

    Result:  1

    NEXT

    END

  53. CHECK IGNITION SYSTEM
    1. Perform ignition system On-vehicle Inspection.

      Refer to ON-VEHICLE INSPECTION [08/2013 - ]

      HINT:

      Perform "Inspection After Repair" after repairing or replacing the ignition system.

      Refer to INITIALIZATION [08/2016 - ]

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA

    Result:  1

    OK

    See step  54

  54. READ FREEZE FRAME DATA
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored.

      Refer to FREEZE FRAME DATA [08/2016 - ]

      Result

      Freeze Frame Data Item for DTC P1605 Result Suspected Area Proceed to
      Total of ISC Learning Value and ISC Feedback Value Below 80% of the current value of the vehicle Intake air volume insufficient A
      80% or higher of the current value of the vehicle B

    Result:  2

    B

    See step  57

    Result:  1

    A

    See step  55

  55. CHECK INTAKE SYSTEM
    1. Check for air leakage in the intake system [vacuum hose disconnection, cracks, damaged gaskets, etc.].

      Refer to ON-VEHICLE INSPECTION [08/2013 - ]

      HINT:

      • If the accelerator pedal is released after racing the engine, the inspection is easier to perform because the vacuum inside the intake pipes increases and the air suction noise becomes louder.
      • If Short FT #1 and Long FT #1 are largely different from the normal values when idling (the intake air volume is small) and almost the same as the normal values when racing the engine (the intake air volume is high), air leakage may be present.

      OK

      There is no air leakage.

      HINT:

      Perform "Inspection After Repair" after repairing or replacing the intake system.

      Refer to INITIALIZATION [08/2016 - ]

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR OR REPLACE INTAKE SYSTEM

    Result:  1

    OK

    See step  56

  56. CHECK INTAKE SYSTEM
    1. Check the intake system.

      Result

      Result Proceed to
      Abnormal A
      Normal B

      HINT:

      Perform "Inspection After Repair" after replacing the mass air flow meter sub-assembly.

      Refer to INITIALIZATION [08/2016 - ]

    Result:  1

    A

    REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA

    Result:  2

    B

    See step  61

  57. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE VVT LINEAR)
    1. Perform the Active Test, referring to DTC P0011 inspection procedure.

      Refer to PROCEDURE - Step 2

      HINT:

      • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
      • When the results of the inspection using the Active Test are normal but the valve operating noise is abnormal, check the valve for any signs of problems.
      • If the camshaft timing oil control valve assembly (for intake camshaft) is stuck at the advanced side, the valve overlap increases and combustion worsens due to the interval EGR which may cause rough idle or cause the engine to stall.

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPLACE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (FOR INTAKE CAMSHAFT). Refer to  REMOVAL [08/2013 - ]

    Result:  1

    OK

    See step  58

  58. CHECK HARNESS AND CONNECTOR (CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (FOR INTAKE CAMSHAFT) - ECM)
    1. Check the harnesses and connectors, referring to DTC P0010 inspection procedure.

      Refer to PROCEDURE - Step 3

      HINT:

      • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
      • Make sure there is not an excessive amount of force applied to the wire harness.

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:  1

    OK

    See step  59

  59. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE VVT EXHAUST LINEAR)
    1. Perform the Active Test, referring to DTC P0014 inspection procedure.

      Refer to PROCEDURE - Step 2

      HINT:

      • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
      • When the results of the inspection using the Active Test are normal but the valve operating noise is abnormal, check the valve for any signs of problems.
      • If the camshaft timing oil control valve assembly (for exhaust camshaft) is stuck on, the valve overlap increases and combustion worsens due to the internal EGR which may cause rough idle or cause the engine to stall.

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPLACE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (FOR EXHAUST CAMSHAFT). Refer to  REMOVAL [08/2013 - ]

    Result:  1

    OK

    See step  60

  60. CHECK HARNESS AND CONNECTOR (CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (FOR EXHAUST CAMSHAFT) - ECM)
    1. Check the harnesses and connectors, referring to DTC P0013 inspection procedure.

      Refer to PROCEDURE - Step 3

      HINT:

      • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
      • Make sure there is not an excessive amount of force applied to the wire harness.

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:  1

    OK

    See step  61

  61. READ FREEZE FRAME DATA
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored.

      Refer to FREEZE FRAME DATA [08/2016 - ]

      Result

      Freeze Frame Data Item for DTC P1605 Suspected Area Proceed to
      IGN Advance Knock Correct Learn Value
      Differs from the current value of the vehicle by 10 deg or more Less than 3 deg(CA)
      • Engine coolant temperature sensor
      • Mass air flow meter sub-assembly
      • Knock control sensor
      		 A
      3 deg(CA) or more - B
      Differs from the current value of the vehicle by less than 10 deg - -

    Result:  2

    B

    CHECK FOR INTERMITTENT PROBLEMS. Refer to  CHECK FOR INTERMITTENT PROBLEMS [08/2013 - ]

    Result:  1

    A

    See step  62

  62. INSPECT ENGINE COOLANT TEMPERATURE SENSOR
    1. Inspect the engine coolant temperature sensor.

      Refer to INSPECTION [08/2013 - ]

      HINT:

      Perform "Inspection After Repair" after replacing the engine coolant temperature sensor.

      Refer to INITIALIZATION [08/2016 - ]

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPLACE ENGINE COOLANT TEMPERATURE SENSOR. Refer to  REMOVAL [08/2013 - ]

    Result:  1

    OK

    See step  63

  63. CHECK HARNESS AND CONNECTOR (ENGINE COOLANT TEMPERATURE SENSOR - ECM)
    1. Disconnect the engine coolant temperature sensor connector.
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      B4-2 - B33-93 (THW) Always Below 1 Ω
      B4-1 - B33-94 (ETHW) Always Below 1 Ω
      B4-2 or B33-93 (THW) - Body ground Always 10 kΩ or higher

      HINT:

      • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
      • Make sure there is not an excessive amount of force applied to the wire harness.

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:  1

    OK

    See step  64

  64. INSPECT MASS AIR FLOW METER SUB-ASSEMBLY (INTAKE AIR TEMPERATURE SENSOR)
    1. Inspect the mass air flow meter sub-assembly.

      Refer to INSPECTION [08/2013 - ]

      HINT:

      • If the intake air temperature sent to the ECM is higher than the standard due to the mass air flow meter sub-assembly (intake air temperature sensor) malfunctioning, the ignition timing may become delayed.
      • Perform "Inspection After Repair" after replacing the mass air flow meter sub-assembly.

        Refer to INITIALIZATION [08/2016 - ]

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPLACE MASS AIR FLOW METER SUB-ASSEMBLY. Refer to  REMOVAL [08/2013 - ]

    Result:  1

    OK

    See step  65

  65. READ VALUE USING TECHSTREAM (IGN ADVANCE AND KNOCK CORRECT LEARN VALUE)
    1. Connect the Techstream to the DLC3.
    2. Start the engine and warm it up until the engine coolant temperature stabilizes.

      HINT:

      The A/C switch and all accessory switches should be off.

    3. Turn the Techstream on.
    4. Idle the engine.
    5. Enter the following menus: Powertrain / Engine and ECT / Data List / Ignition / IGN Advance and Knock Correct Learn Value.

      Powertrain > Engine and ECT > Data List

      Tester Display
      IGN Advance
      Knock Correct Learn Value
    6. Check the Data List indication.

      Result

      Data List Proceed to
      IGN Advance Knock Correct Learn Value
      Differs from the current value of the vehicle by 10 deg or more Less than 3 deg(CA) A
      3 deg(CA) or more B
      Differs from the current value of the vehicle by less than 10 deg -

      HINT:

      If the results of the checks performed in steps 57 to 65 were all normal and the sum of ISC Feedback Value and ISC Learning Value in the Data List is 120% of the normal value or more, check for carbon deposits in the throttle body assembly. If there are carbon deposits, clean them off to finish the troubleshooting procedure.

    Result:  1

    A

    CHECK KNOCK CONTROL SENSOR CIRCUIT. Refer to  DTC P0327: Knock Sensor 1 Circuit Low Input (Bank 1 or Single Sensor); DTC P0328: Knock Sensor 1 Circuit High Input (Bank 1 or Single Sensor) [08/2016 - ]

    Result:  2

    B

    END

  66. CHECK TERMINAL VOLTAGE (POWER SOURCE OF FUEL INJECTOR ASSEMBLY)
    1. Check the harness and connectors, referring to Fuel Injector Circuit inspection procedure.

      Refer to PROCEDURE - Step 1

      HINT:

      • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
      • Make sure there is not an excessive amount of force applied to the wire harness.
      • A rapid decrease in engine speed may have been caused by a malfunction in all or multiple cylinders. (There may be an electrical malfunction in the wiring shared by all the cylinders.)

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR FUEL INJECTOR ASSEMBLY POWER SOURCE CIRCUIT. Refer to  PROCEDURE - Step 1

    Result:  1

    OK

    See step  67

  67. CHECK IGNITION SYSTEM
    1. Perform ignition system On-vehicle Inspection.

      Refer to ON-VEHICLE INSPECTION [08/2013 - ]

      HINT:

      Perform "Inspection After Repair" after repairing or replacing the ignition system.

      Refer to INITIALIZATION [08/2016 - ]

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA

    Result:  1

    OK

    See step  68

  68. CHECK FREEZE FRAME DATA
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored.

      Refer to FREEZE FRAME DATA [08/2016 - ]

      Result

      Freeze Frame Data Item for DTC P1605 Suspected Area Proceed to
      A/C Signal Air Conditioner FB Val Power Steering Signal
      A/C Signal display changes from OFF to ON*1 Value is shown - A/C system A
      Value is 0 L/s Does not change from OFF - B
      *2
      C
      *3
      Changes from OFF to ON Power steering system
      A/C Signal display does not change from OFF*1 - Changes from OFF to ON
      Does not change from OFF -

      HINT:

      • *1: Check not only the ON/OFF state of the air conditioner but also the change in air conditioner load.
      • *2: for CVT Models
      • *3: for Manual Transaxle Models
      • The normal value for the ISC learned value is engine displacement (liters) x 0.9.
      • Even if the results are normal, the power steering system or A/C system may have been malfunctioning. If there are no problems with other parts, inspect the power steering system or A/C system.

    Result:  1

    A

    CHECK AIR CONDITIONING SYSTEM

    Result:  3

    C

    See step  71

    Result:  2

    B

    See step  69

  69. CHECK FREEZE FRAME DATA
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored.

      Refer to FREEZE FRAME DATA [08/2016 - ]

      Result

      Freeze Frame Data Item for DTC P1605 Suspected Area Proceed to
      Electrical Load Signal 1 (2) or Electric Load Feedback Val Electric Load Feedback Val Difference between Engine Speed and SPD (NT) Vehicle Speed
      Electrical Load Signal 1 (2) display changes from OFF to ON*1, or value displayed for Electric Load Feedback Val increases*1 Value displayed for Electric Load Feedback Val changes - - Electrical load signal circuit C
      Value displayed for Electric Load Feedback Val does not change At least 1 of the 5 sets of freeze frame data is less than 100 rpm Less than 5 km/h (3 mph) CVT system B
      5 km/h (3 mph) or more - A
      All 5 sets of freeze frame data are 100 rpm or more - -
      Electrical Load Signal 1 (2) display does not change from OFF, or value displayed for Electric Load Feedback Val does not increase - At least 1 of the 5 sets of freeze frame data is less than 100 rpm Less than 5 km/h (3 mph) CVT system B
      5 km/h (3 mph) or more - A
      All 5 sets of freeze frame data are 100 rpm or more - -

      HINT:

      • *1: If the Electrical Load Signal 1 (2) display changes from OFF to ON, or the "Electric Load Feedback Val" increases, it probably is a malfunction due to a change in electrical load. Check the generator and the continuity and connections between the generator and ECM.
      • If the vehicle speed is 5 km/h (3 mph) or less and the difference between Engine Speed and SPD (NT) is 100 rpm or less, inspect the CVT. (Depending on the rate of vehicle deceleration, the engine speed may have decreased due to the CVT lock-up release being late.)
      • The normal value for the ISC learned value is engine displacement (liters) x 0.9.
      • Even if the results are normal, the electrical load signal system or CVT system may have been malfunctioning. If there are no problems with other parts, inspect the electrical load system or CVT system.

    Result:  6

    B

    CHECK CVT SYSTEM. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [08/2016 - ]

    Result:  7

    C

    CHECK GENERATOR CIRCUIT. Refer to  ON-VEHICLE INSPECTION [08/2013 - ]

    Result:  1

    A

    See step  70

  70. CHECK FREEZE FRAME DATA
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored.

      Refer to FREEZE FRAME DATA [08/2016 - ]

      Result

      Freeze Frame Data Item for DTC P1605 Suspected Area Proceed to
      Shift SW Status (P Range)
      Shift SW Status (N Range)      		 Neutral Position SW Signal
      P and N position are both OFF in at least one data set ON when shift lever in D or R Park/Neutral position switch assembly A
      OFF when shift lever in D or R CVT system B
      All 5 sets of freeze frame data are ON - - C

      HINT:

      Even if the results are normal, the park/neutral position switch assembly or CVT system may have been malfunctioning. If there are no problems with other parts, inspect the park/neutral position switch assembly or CVT system.

    Result:  1

    A

    INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY. Refer to  INSPECTION [08/2013 - ]

    Result:  2

    B

    CHECK CVT SYSTEM. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [08/2016 - ]

    Result:  3

    C

    CHECK FOR INTERMITTENT PROBLEMS. Refer to  CHECK FOR INTERMITTENT PROBLEMS [08/2013 - ]

  71. CHECK FREEZE FRAME DATA
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored.

      Refer to FREEZE FRAME DATA [08/2016 - ]

      Result

      Freeze Frame Data Item for DTC P1605 Suspected Area Proceed to
      Electrical Load Signal 1 (2) or Electric Load Feedback Val Electric Load Feedback Val
      Electrical Load Signal 1 (2) display changes from OFF to ON*, or value displayed for Electric Load Feedback Val increases* Value displayed for Electric Load Feedback Val changes Electrical load signal circuit A
      Value displayed for Electric Load Feedback Val does not change - B
      Electrical Load Signal 1 (2) display does not change from OFF, or value displayed for Electric Load Feedback Val does not increase - -

      HINT:

      • *: If the Electrical Load Signal 1 (2) display changes from OFF to ON, or the "Electric Load Feedback Val" increases, it probably is a malfunction due to a change in electrical load. Check the generator and the continuity and connections between the generator and ECM.
      • The normal value for the ISC learned value is engine displacement (liters) x 0.9.
      • Even if the results are normal, the electrical load signal system may have been malfunctioning. If there are no problems with other parts, inspect the electrical load system.

    Result:  1

    A

    CHECK GENERATOR CIRCUIT. Refer to  ON-VEHICLE INSPECTION [08/2013 - ]

    Result:  2

    B

    CHECK FOR INTERMITTENT PROBLEMS. Refer to  CHECK FOR INTERMITTENT PROBLEMS [08/2013 - ]

  72. CHECK FREEZE FRAME DATA
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored.

      Refer to FREEZE FRAME DATA [08/2016 - ]

      Result

      Freeze Frame Data Item Result Suspected Area Proceed to
      Throttle Sensor Position, Calculate Load Calculate Load decreases while Throttle Sensor Position increases Mass air flow meter sub-assembly A
      Calculate Load does not decrease while Throttle Sensor Position increases - B

    Result:  2

    B

    See step  76

    Result:  1

    A

    See step  73

  73. INSPECT MASS AIR FLOW METER SUB-ASSEMBLY
    1. Remove the mass air flow meter sub-assembly.

      Refer to REMOVAL [08/2013 - ]

    2. Check for foreign matter in the air flow passage of the mass airflow meter sub-assembly.

      Result

      Result Proceed to
      Visible foreign matter is not present A
      Visible foreign matter is present B

      HINT:

      Perform "Inspection After Repair" after replacing the mass air flow meter sub-assembly.

      Refer to INITIALIZATION [08/2016 - ]

    Result:  2

    B

    REPLACE MASS AIR FLOW METER SUB-ASSEMBLY. Refer to  REMOVAL [08/2013 - ]

    Result:  1

    A

    See step  74

  74. CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER SUB-ASSEMBLY - ECM)
    1. Check the harnesses and connectors, referring to DTC P0102 inspection procedure.

      Refer to PROCEDURE - Step 3

      HINT:

      • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
      • Make sure there is not an excessive amount of force applied to the wire harness.

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:  1

    OK

    See step  75

  75. PERFORM DRIVE TEST
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Start the engine and warm it up until the engine coolant temperature stabilizes.

      HINT:

      The A/C switch and all accessory switches should be off.

    5. Idle the engine.
    6. Using the Techstream, read the value of Calculate Load in the Data List.

      Powertrain > Engine and ECT > Data List

      Tester Display
      Calculate Load

      Standard

      Data List Specified Condition
      Calculate Load 90 to 110% of the normal value of the vehicle

      HINT:

      Perform "Inspection After Repair" after replacing the mass air flow meter sub-assembly.

      Refer to INITIALIZATION [08/2016 - ]

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPLACE MASS AIR FLOW METER SUB-ASSEMBLY. Refer to  REMOVAL [08/2013 - ]

    Result:  1

    OK

    See step  76

  76. CHECK TERMINAL VOLTAGE (POWER SOURCE OF FUEL INJECTOR ASSEMBLY)
    1. Check the harness and connectors, referring to Fuel Injector Circuit inspection procedure.

      Refer to PROCEDURE - Step 1

      HINT:

      • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
      • Make sure there is not an excessive amount of force applied to the wire harness.
      • A rapid decrease in engine speed may have been caused by a malfunction in all or multiple cylinders. (There may be an electrical malfunction in the wiring shared by all the cylinders.)

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR FUEL INJECTOR ASSEMBLY POWER SOURCE CIRCUIT. Refer to  PROCEDURE - Step 1

    Result:  1

    OK

    See step  77

  77. CHECK IGNITION SYSTEM
    1. Perform ignition system On-vehicle Inspection.

      Refer to ON-VEHICLE INSPECTION [08/2013 - ]

      HINT:

      Perform "Inspection After Repair" after repairing or replacing the ignition system.

      Refer to INITIALIZATION [08/2016 - ]

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA

    Result:  1

    OK

    See step  78

  78. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE FUEL PUMP / SPEED)
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Fuel Pump / Speed.

      Powertrain > Engine and ECT > Active Test

      Tester Display
      Control the Fuel Pump / Speed
    5. Check whether the fuel pump operating sound occurs when performing the Active Test on the Techstream.

      Standard

      Techstream Operation Specified Condition
      ON Operating sound heard
      OFF Operating sound not heard

      Result

      Result Proceed to
      Abnormal A
      Normal B

      HINT:

      • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
      • While performing the Active Test, make sure that there is no fuel leakage from the pipes, no signs that fuel has leaked, and no fuel smell.
      • If the fuel pump operating noise is abnormal, proceed to step 78.

    Result:  2

    B

    See step  80

    Result:  1

    A

    See step  79

  79. INSPECT FUEL PUMP
    1. Inspect the fuel pump.

      Refer to INSPECTION [08/2013 - ]

      HINT:

      Perform "Inspection After Repair" after replacing the fuel pump.

      Refer to INITIALIZATION [08/2016 - ]

      Result

      Proceed to
      OK
      NG

    Result:  1

    OK

    CHECK FUEL PUMP CONTROL CIRCUIT. Refer to  Fuel Pump Control Circuit [08/2013 - ]

    Result:  2

    NG

    REPLACE FUEL PUMP. Refer to  REMOVAL [08/2016 - ]

  80. CHECK FUEL SYSTEM
    1. Check the fuel system.
      • Check the fuel pump operation.
      • Check the fuel leaks.
      • Check the fuel pressure.
      • Perform the Active Test [Control the All Cylinder Fuel Cut].

      HINT:

      For the fuel system On-vehicle Inspection, refer to the following procedures.

      Refer to ON-VEHICLE INSPECTION [08/2013 - ]

      Result

      Result Proceed to
      Abnormal A
      Normal B

    Result:  2

    B

    CHECK FOR INTERMITTENT PROBLEMS. Refer to  CHECK FOR INTERMITTENT PROBLEMS [08/2013 - ]

    Result:  1

    A

    See step  81

  81. CHECK FUEL SYSTEM
    1. Check for foreign matter such as iron particles around the fuel pump (fuel pump, fuel pump filter and inside the fuel tank), and for signs that the fuel pump was stuck.

      Result

      Result Proceed to
      There is no foreign matter and no signs that fuel pump was stuck A
      There is foreign matter or signs that fuel pump was stuck B

      HINT:

      If there is foreign matter such as iron particles on the fuel pump, fuel filter or fuel tank, remove the foreign matter.

    Result:  2

    B

    REPAIR OR REPLACE FUEL SYSTEM

    Result:  1

    A

    See step  82

  82. CHECK FUEL SYSTEM
    1. Check the fuel system.
      • Check the fuel pump operation.
      • Check the fuel leaks.
      • Check the fuel pressure.
      • Perform the Active Test [Control the All Cylinder Fuel Cut].

      HINT:

      Result

      Proceed to
      OK
      NG

    Result:  1

    OK

    END

    Result:  2

    NG

    REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA

scientia non olet · About LEMON Manuals
