Removal [08/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE AIR FUEL RATIO SENSOR

    Refer to REMOVAL [08/2013 - ]

  2. REMOVE WIRE HARNESS CLAMP BRACKET

    Refer to PROCEDURE - Step 40 Refer to PROCEDURE - Step 40

  3. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

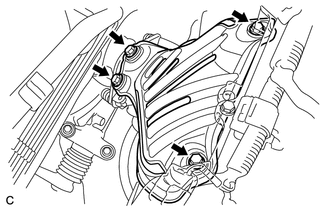

    1. Remove the 4 bolts and No. 1 exhaust manifold heat insulator from the exhaust manifold.
      GTY292385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FRONT FLOOR UNDER REAR REINFORCEMENT

    See step  3

  5. REMOVE FRONT NO. 1 CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 1 Refer to PROCEDURE - Step 2

  6. REMOVE FRONT CENTER FLOOR COVER LH

    Refer to PROCEDURE - Step 3

  7. REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Front and Rear Catalyst)
    1. Remove the clip.
    2. Turn back the floor carpet.

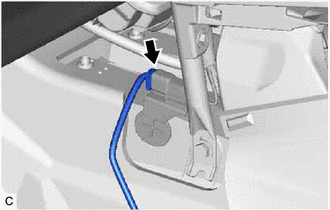

    3. Disconnect the heated oxygen sensor connector.
      GTY436653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

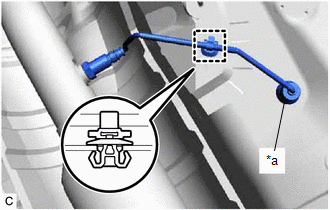

    4. Disengage the clamp and heated oxygen sensor grommet from the vehicle body.
      GTY432548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Grommet

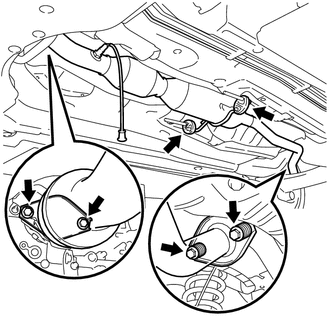

    5. Remove the 4 bolts and 4 compression springs.
      GTY452439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the front exhaust pipe assembly (TWC: Front and Rear Catalyst) from the 2 exhaust pipe supports.
    7. Remove the 2 gaskets from the front exhaust pipe assembly (TWC: Front and Rear Catalyst) and exhaust manifold.
  8. REMOVE DRIVE SHAFT HEAT INSULATOR SUB-ASSEMBLY

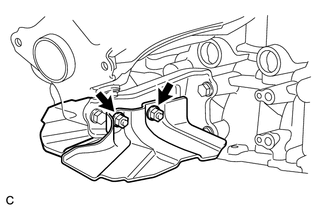

    1. Remove the 2 nuts and 2 drive shaft heat insulator sub-assemblies from the manifold stay.
      GTY293876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE MANIFOLD STAY

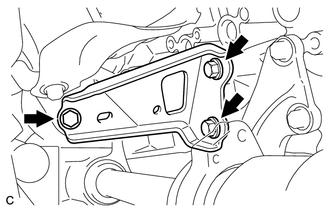

    1. Remove the 3 bolts and manifold stay.
      GTY386065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE EXHAUST MANIFOLD

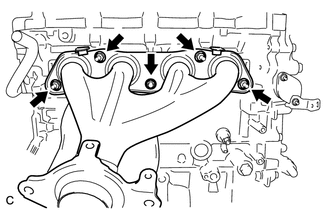

    1. Remove the 5 nuts and exhaust manifold from the cylinder head sub-assembly.
      GTY391424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the exhaust manifold to head gasket from the cylinder head sub-assembly.
  11. REMOVE NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
    1. Remove the 3 bolts and No. 2 exhaust manifold heat insulator from the exhaust manifold.
      GTY293424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
