Components [08/2013 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

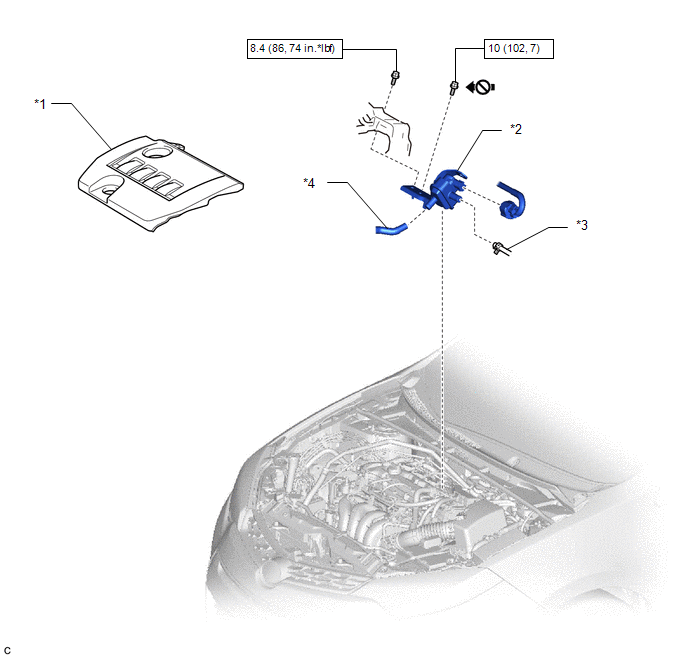

Fig 1: Purge Valve Replacement Components With Torque Specifications
GTY708933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 2 CYLINDER HEAD COVER *2 PURGE VALVE (PURGE VSV)
*3 NO. 1 FUEL VAPOR FEED HOSE *4 NO. 2 FUEL VAPOR FEED HOSE
Specified torque: N*m (kgf*cm, ft.*lbf) Do not apply lubricants to the threaded parts
