Components [08/2013 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

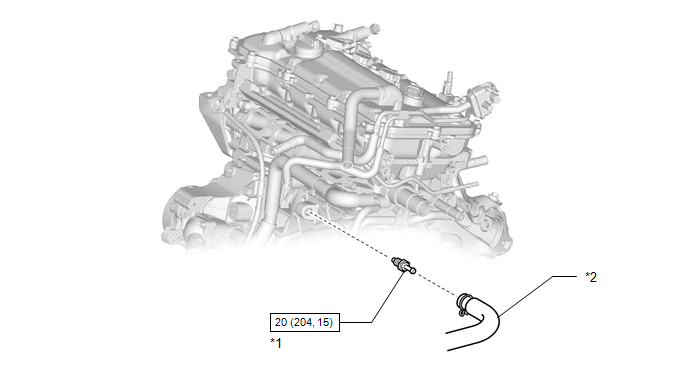

Fig 1: PCV Valve Replacement Components With Torque Specifications
GTY449294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY) *2 NO. 1 VENTILATION HOSE
N*m (kgf*cm, ft.*lbf): Specified torque * Precoated part
