Components [08/2013 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

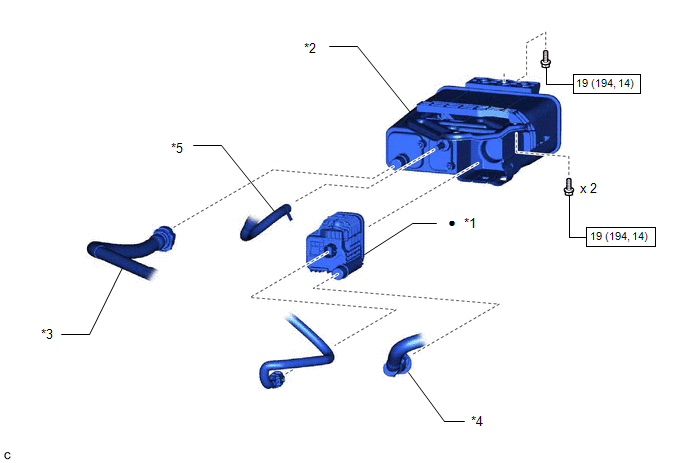

Fig 1: Canister Replacement Components With Torque Specifications
GTY441329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 LEAK DETECTION PUMP SUB-ASSEMBLY *2 CHARCOAL CANISTER SUB-ASSEMBLY
*3 VENT LINE HOSE *4 AIR LINE TUBE
*5 PURGE LINE HOSE - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
