Components [08/2013 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.

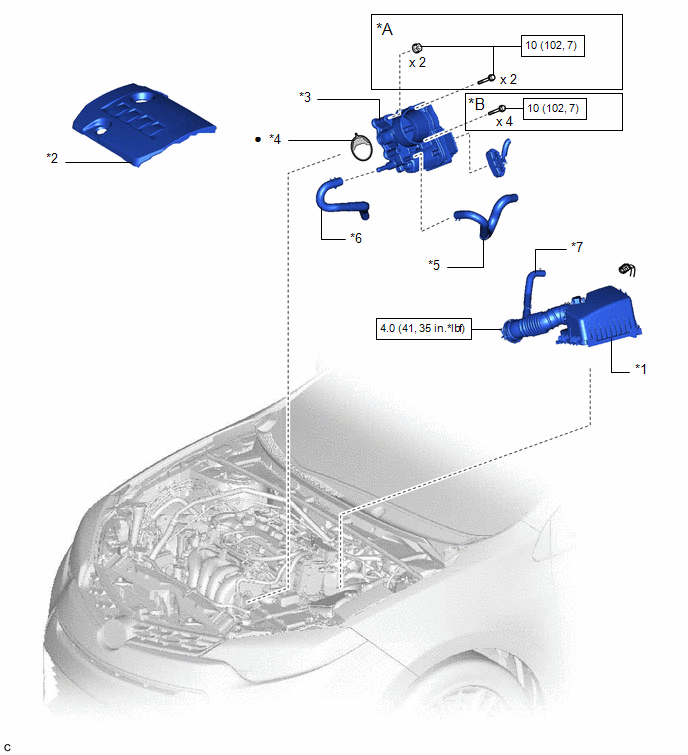

| Callout | Description | Callout | Description |
| *A | w/ Stud Bolt | *B | w/o Stud Bolt |
| *1 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *2 | NO. 2 CYLINDER HEAD COVER |
| *3 | THROTTLE BODY ASSEMBLY | *4 | THROTTLE BODY GASKET |
| *5 | NO. 1 WATER BY-PASS HOSE | *6 | NO. 2 WATER BY-PASS HOSE |
| *7 | NO. 2 VENTILATION HOSE | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
