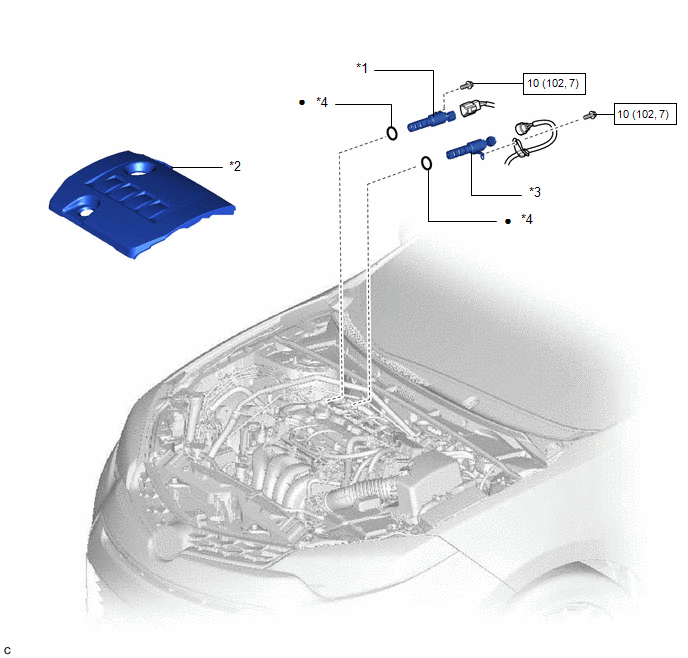

Components [08/2013 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
| Callout | Description | Callout | Description |
| *1 | CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side) | *2 | NO. 2 CYLINDER HEAD COVER |
| *3 | CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side) | *4 | O-RING |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
