Removal [04/2014 - ]: Procedure

  1. REMOVE COMBINATION METER ASSEMBLY

    Refer to REMOVAL [08/2013 - 08/2016] Refer to REMOVAL [08/2016 - ]

  2. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9 Refer to PROCEDURE - Step 8

  3. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY (w/ Driver Side Knee Airbag)

    Refer to REMOVAL [08/2013 - 08/2016] Refer to REMOVAL [08/2016 - ]

  4. REMOVE STOP LIGHT SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 2

  5. REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER
  6. REMOVE BRAKE PEDAL RETURN SPRING

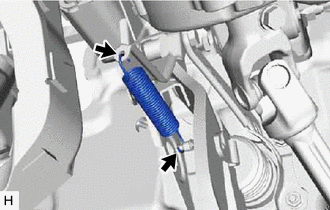

    1. Remove the brake pedal return spring from the brake pedal support assembly and push rod pin.
      GTY452085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE PUSH ROD PIN

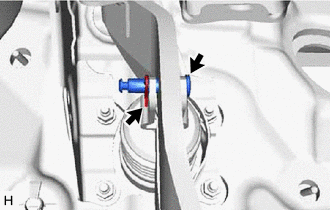

    1. Remove the clip and push rod pin.
      GTY431552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE BRAKE PEDAL SUPPORT ASSEMBLY

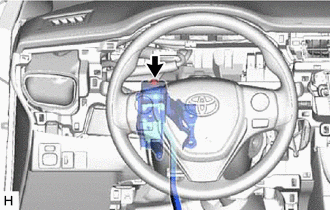

    1. Remove the bolt and separate the brake pedal support assembly from the instrument panel reinforcement assembly.
      GTY431548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

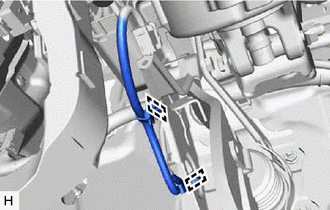

    2. Disengage the 2 clamps and separate the wire harness from the brake pedal support assembly.
      GTY431549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

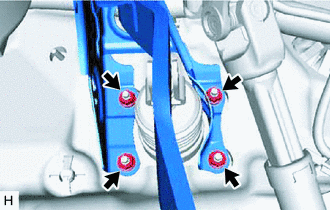

    3. Remove the 4 nuts and brake pedal support assembly.
      GTY431546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the nut from the brake pedal support assembly.
      GTY431547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
