Removal [08/2013 - ]: Procedure

See step  3

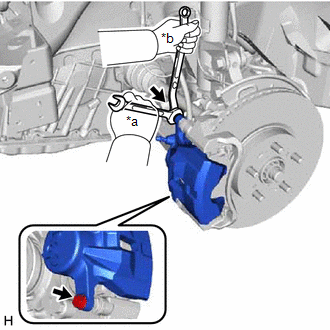

1. Hold the 2 front disc brake cylinder slide pins and remove the 2 bolts and front disc brake cylinder assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Hold
   *b	Turn

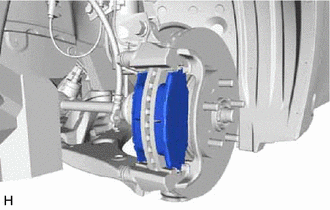

1. Remove the 2 front disc brake pads from the front disc brake cylinder mounting.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the front No. 1 anti-squeal shim and front No. 2 anti-squeal shim from each front disc brake pad.
2. Remove the pad wear indicator plate from each front disc brake pad.

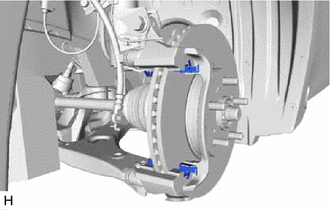

1. Remove the 4 front disc brake pad support plates from the front disc brake cylinder mounting.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Each front disc brake pad support plate has a different shape. Be sure to put an identification mark on each front disc brake pad support plate so that it can be reinstalled to its original position.

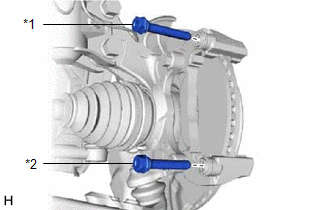

1. Remove the front No. 1 disc brake cylinder slide pin and front No. 2 disc brake cylinder slide pin from the front disc brake cylinder mounting.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Front No. 1 Disc Brake Cylinder Slide Pin
   *2	Front No. 2 Disc Brake Cylinder Slide Pin

1. Using a screwdriver with its tip wrapped with protective tape, remove the front disc brake cylinder slide bushing from the front No. 2 disc brake cylinder slide pin.
   NOTE:

   Do not damage the front No. 2 disc brake cylinder slide pin.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

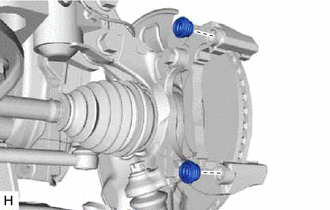

1. Remove the 2 front disc brake bushing dust boots from the front disc brake cylinder mounting.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

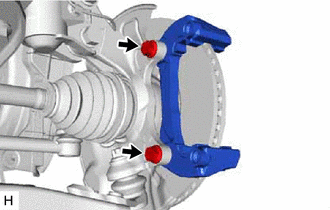

1. Remove the 2 bolts and front disc brake cylinder mounting from the steering knuckle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

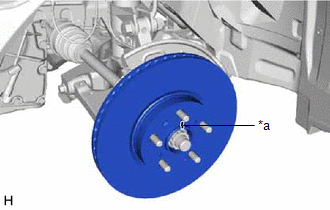

1. Put matchmarks on the front disc and the front axle hub sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

2. Remove the front disc.
