System Diagram [04/2014 - 08/2016]

Combination Meter Assembly (Multi-information Display (Segment LCD Type))

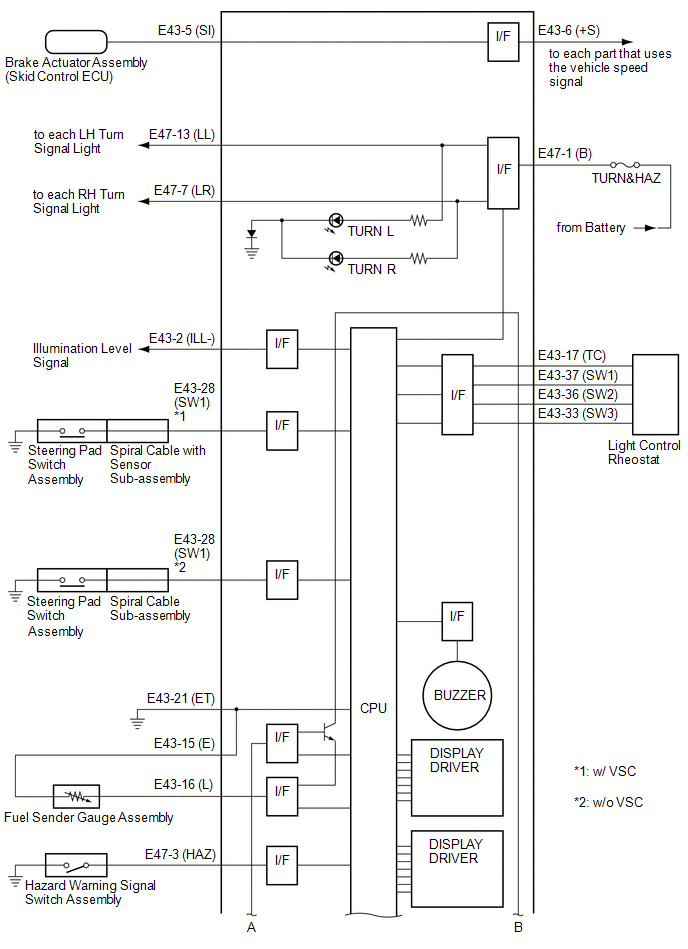

Fig 1: Combination Meter Assembly System Diagram (Multi-information Display, Segment LCD Type), 04/2014 - 08/2016 (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

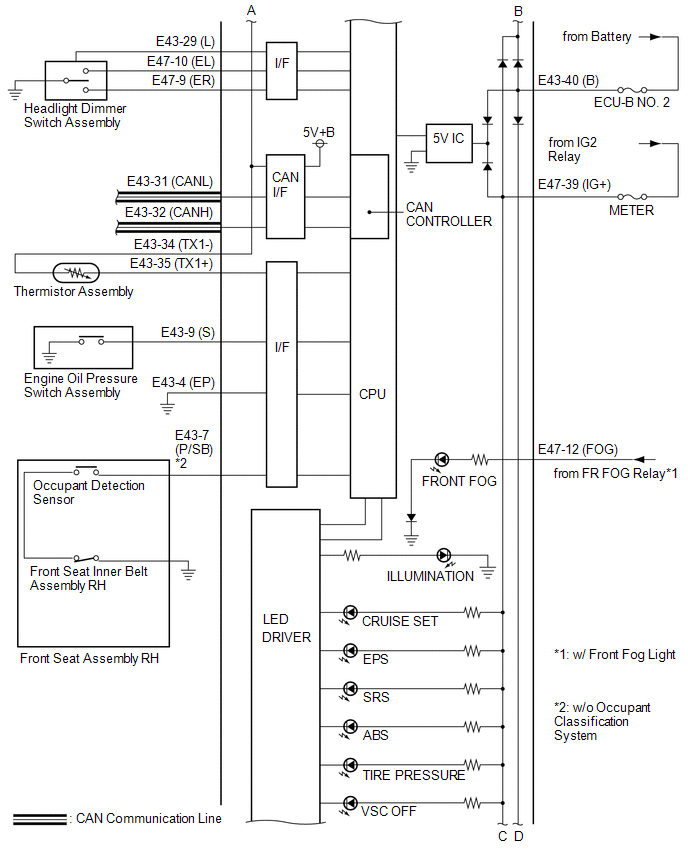

Fig 2: Combination Meter Assembly System Diagram (Multi-information Display, Segment LCD Type), 04/2014 - 08/2016 (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

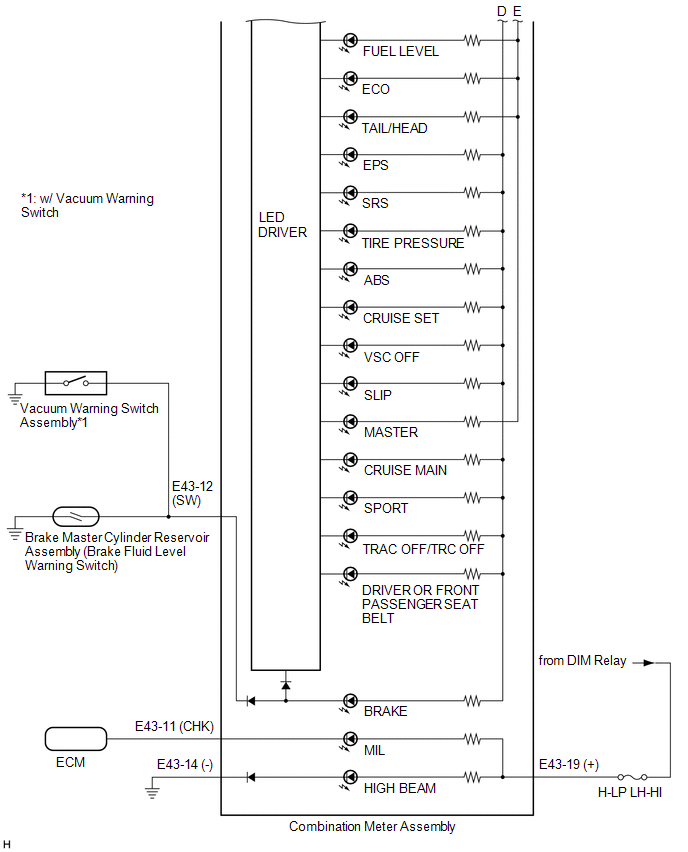

Fig 3: Combination Meter Assembly System Diagram (Multi-information Display, Segment LCD Type), 04/2014 - 08/2016 (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Combination Meter Assembly (Multi-information Display (Dot LCD Type))

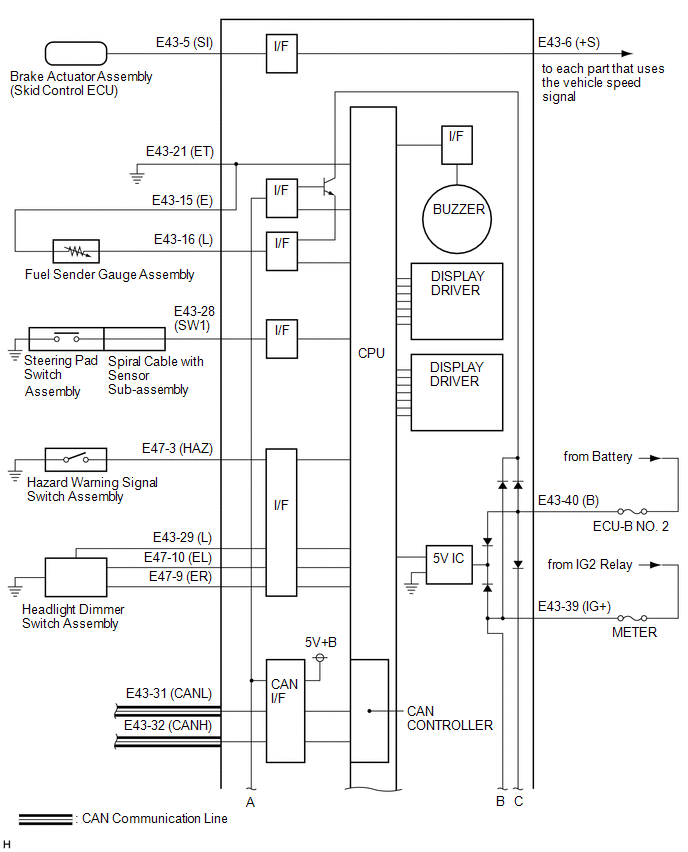

Fig 4: Combination Meter Assembly System Diagram (Multi-information Display, Dot LCD Type), 04/2014 - 08/2016 (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

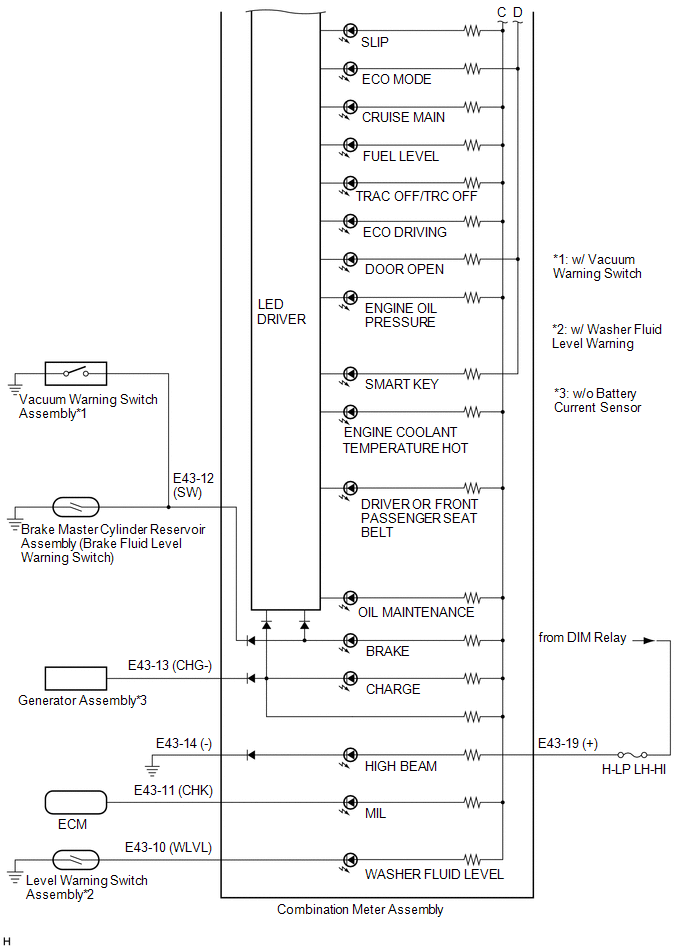

Fig 5: Combination Meter Assembly System Diagram (Multi-information Display, Dot LCD Type), 04/2014 - 08/2016 (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

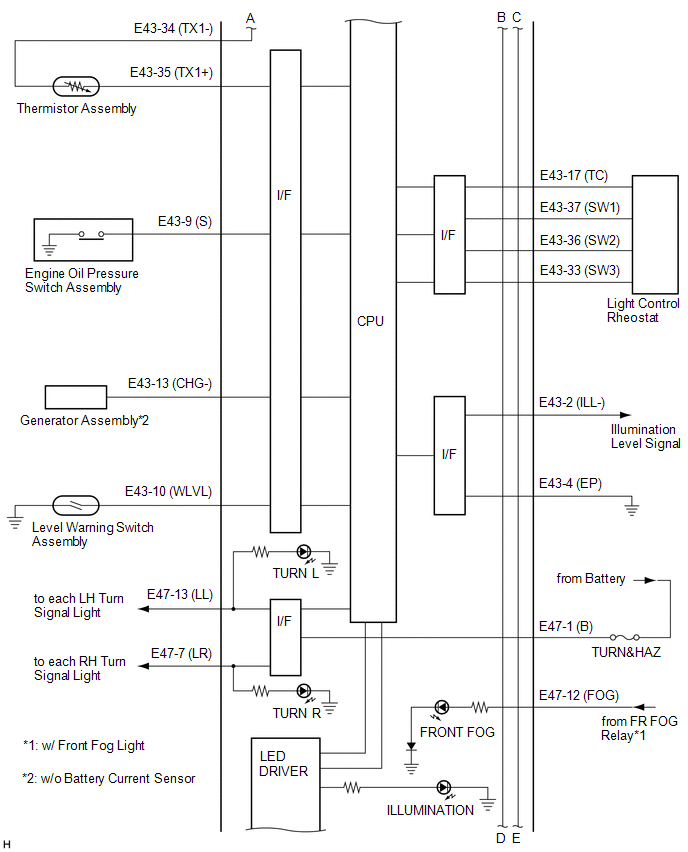

Fig 6: Combination Meter Assembly System Diagram (Multi-information Display, Dot LCD Type), 04/2014 - 08/2016 (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
