Components [08/2015 - ]: Illustration

Fig 1: Rear Seat Outer Belt Assembly Replacement Components With Torque Specifications (1 Of 2)
GTY589447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

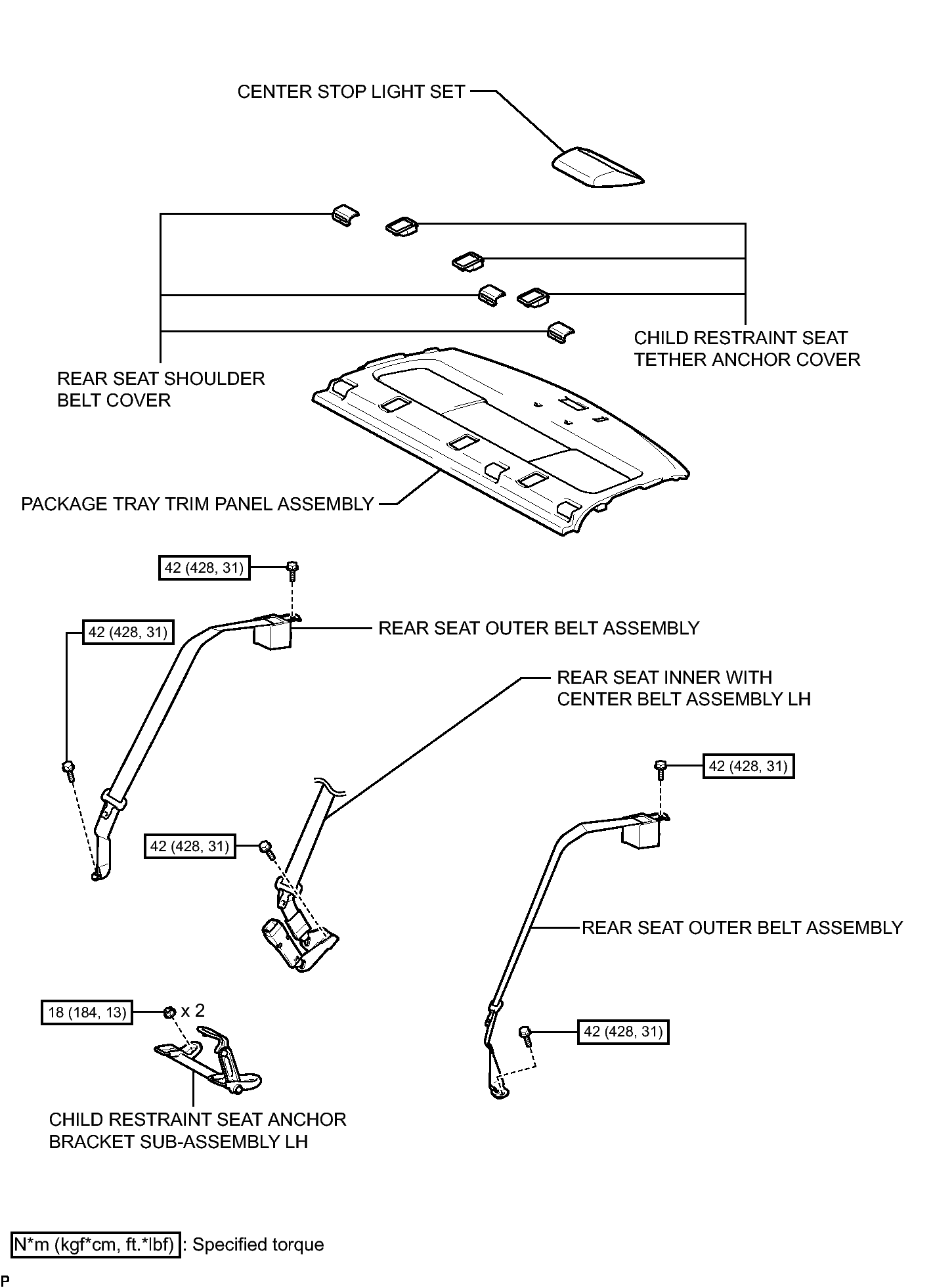

Fig 1: Rear Seat Outer Belt Assembly Replacement Components With Torque Specifications (2 Of 2)
GTY590212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
