Components [08/2015 - ]: Illustration

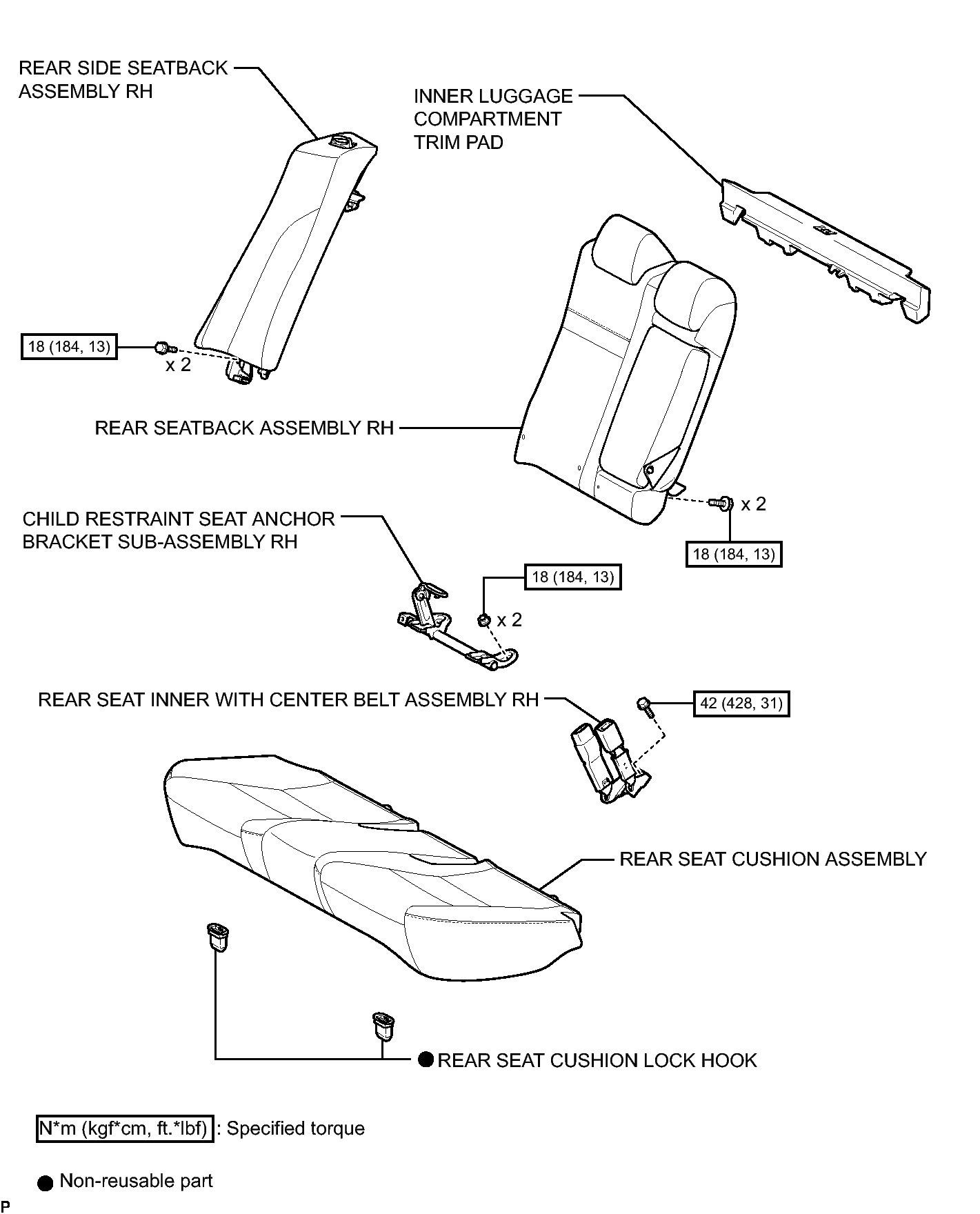

Fig 1: Rear Seat Inner Belt Assembly Replacement Components With Torque Specifications (1 Of 3)
GTY585582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

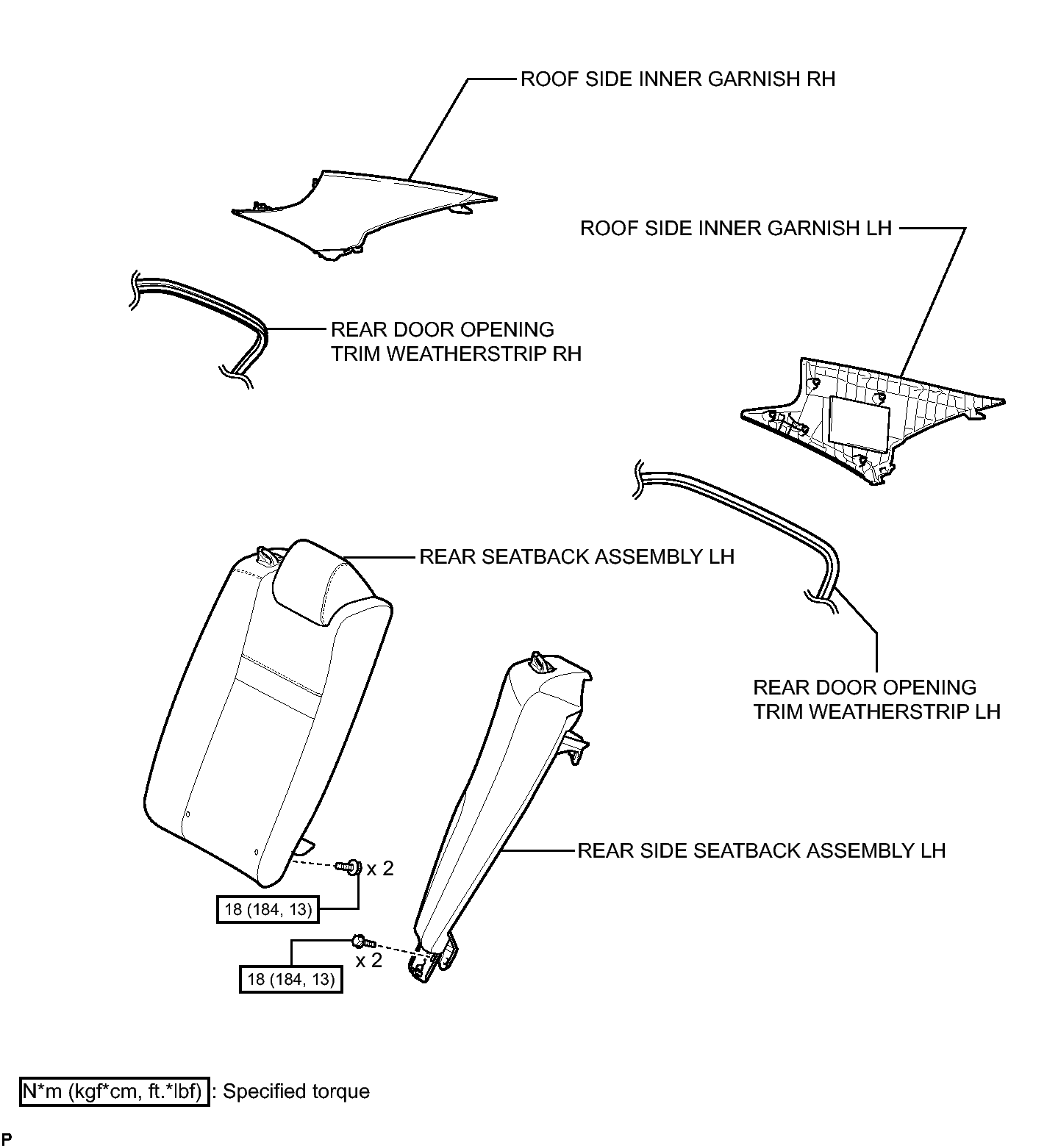

Fig 1: Rear Seat Inner Belt Assembly Replacement Components With Torque Specifications (2 Of 3)
GTY559821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

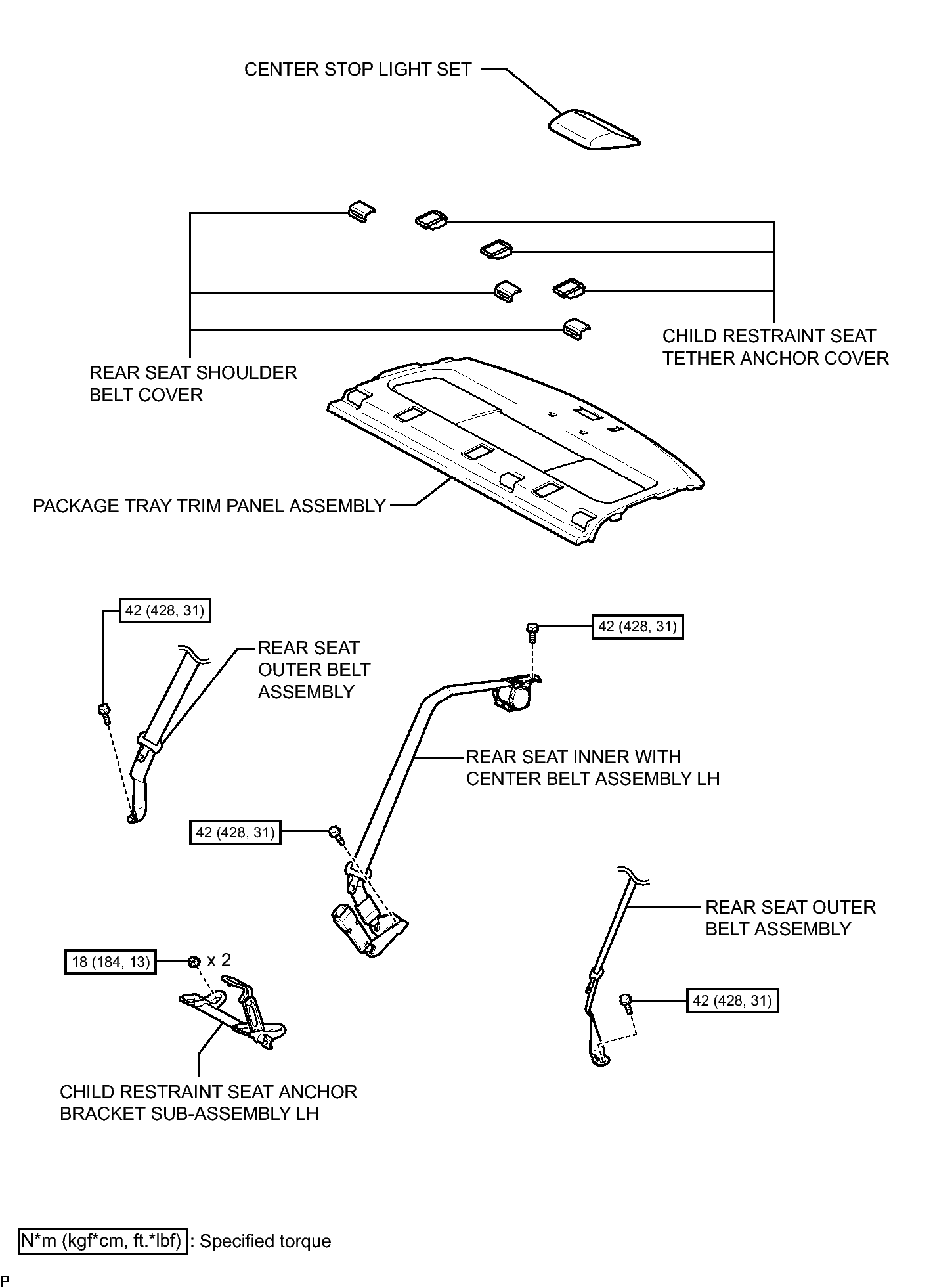

Fig 1: Rear Seat Inner Belt Assembly Replacement Components With Torque Specifications (3 Of 3)
GTY581277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
