Components [08/2015 - ]: Illustration

Fig 1: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications (1 Of 2)
GTY589447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

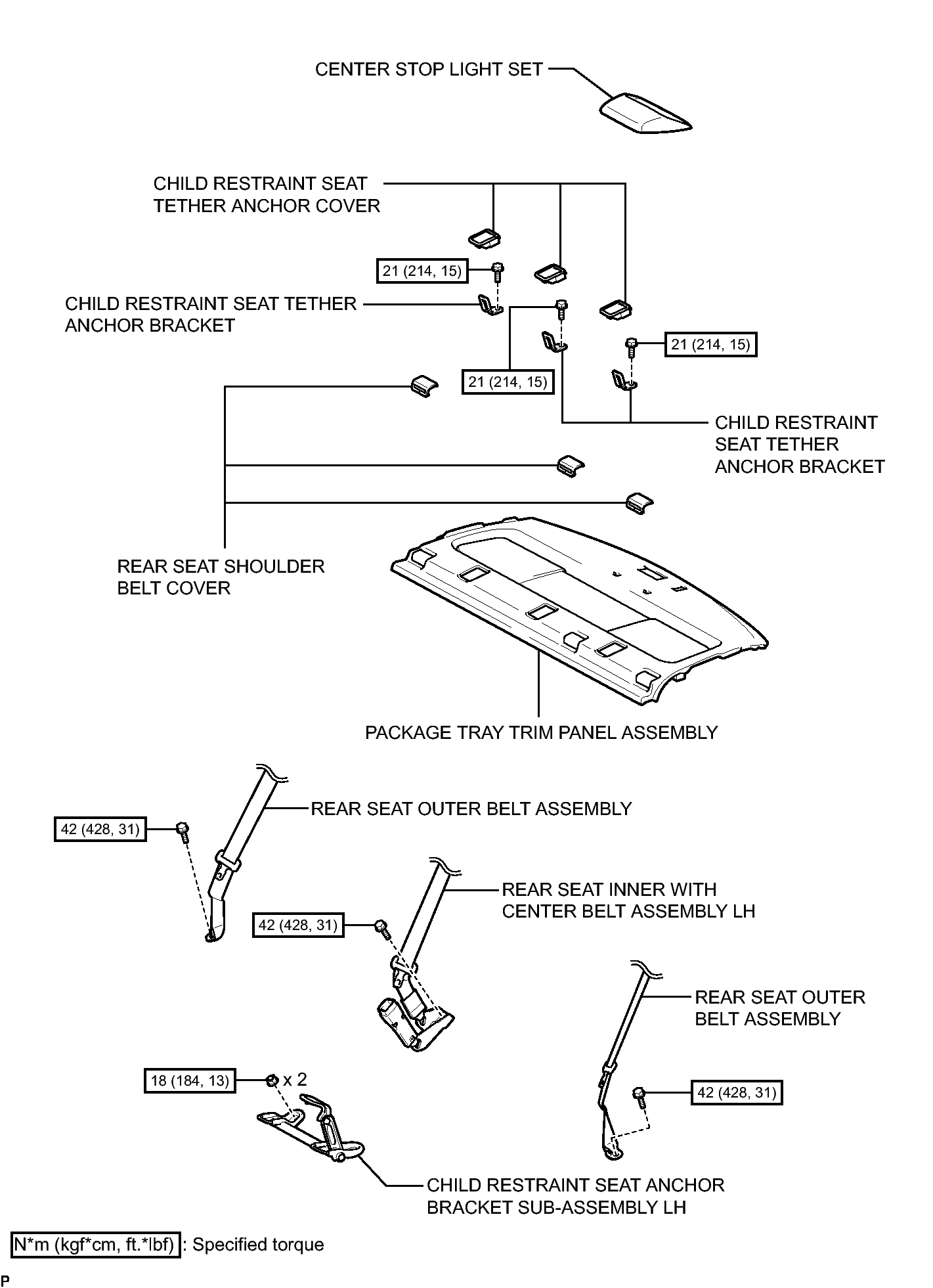

Fig 1: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications (2 Of 2)
GTY610566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
