Installation [08/2015 - ]

HINT:

• Use the same procedure for the RH side and LH side.
• The procedure listed below is for the LH side.

1. INSTALL DOOR SIDE AIRBAG SENSOR
   1. Check that the ignition switch is off.
   2. Check that the cable is disconnected from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

   3. Before connecting the connector, check that the position of the white housing lock is correct as shown in the illustration.
      Fig 1: Identifying Correct White Housing Lock Position

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *a

      Incorrect

      *b

      Correct

   4. Insert the pin (stopper) into the door hole and install the door side airbag sensor to the front door panel with the bolt.

      Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

      NOTE:

      • If the door side airbag sensor has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.
      • When installing the door side airbag sensor, be careful that the SRS wiring does not interfere with or is not pinched between other parts.
      • Make sure that the pin (stopper) is securely inserted into the body hole.
      • Tighten the bolt while holding the door side airbag sensor because the door side airbag sensor pin (stopper) is easily damaged.
   5. Connect the connector to the door side airbag sensor.
      NOTE:

      When connecting any airbag connector, take care not to damage the airbag wire harness.

      1. Be sure to engage the connectors until they are locked (when locking, make sure that a click sound can be heard).

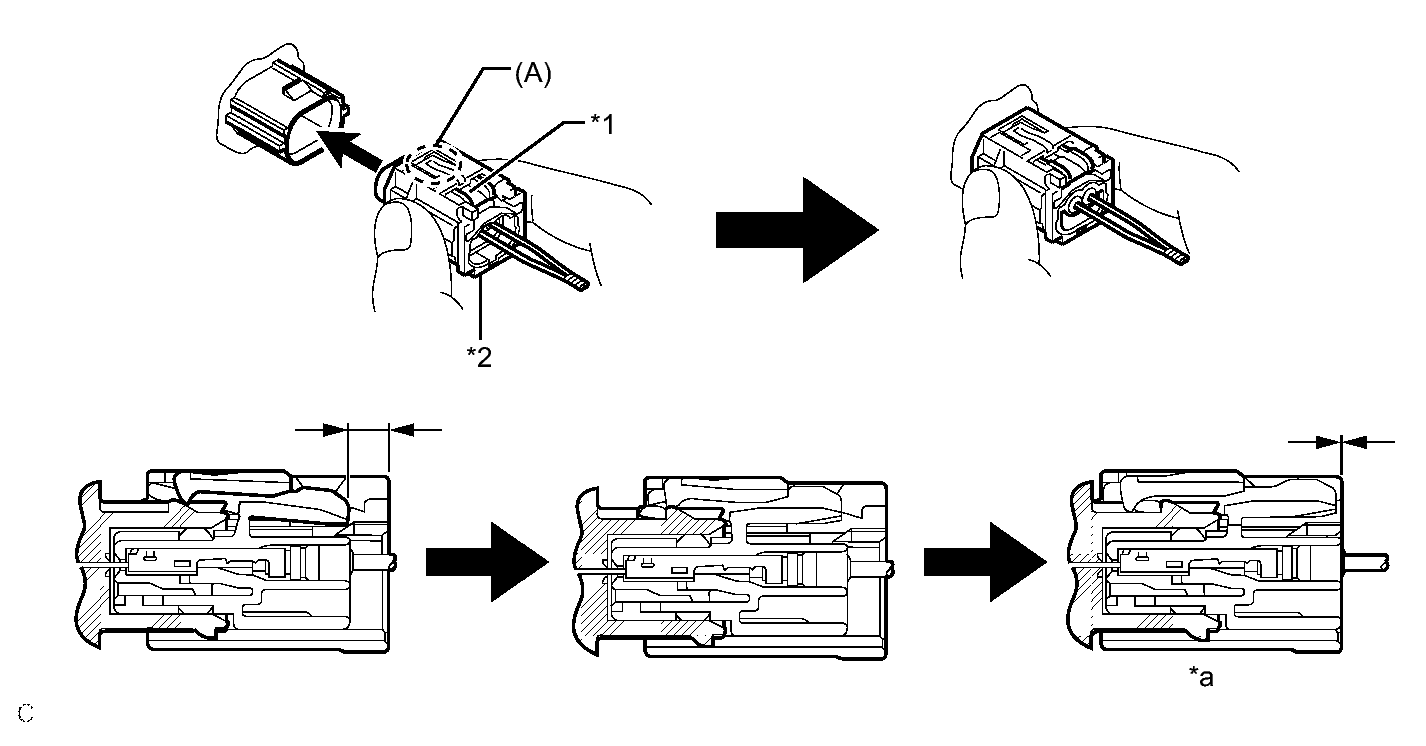

         Fig 2: Identifying Housing Lock, CPA & Completed Connection

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
         TEXT IN ILLUSTRATION



         *1	White Housing Lock	*2	Yellow CPA
         *a	Connection is Completed	-	-

         HINT:

         When engaged, the white housing lock will slide. Be sure not to hold the white housing lock and part (A), as it may result in an insecure fit.

   6. Check that there is no looseness in the installation parts of the door side airbag sensor.
2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY  . Refer to REASSEMBLY [08/2015 - ] - Step 42
3. INSTALL COURTESY LIGHT ASSEMBLY  . Refer to INSTALLATION [08/2015 - ] - Step 1
4. INSTALL FRONT ARMREST ASSEMBLY  . Refer to REASSEMBLY [08/2015 - ] - Step 44
5. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)  . Refer to REASSEMBLY [08/2015 - ] - Step 45
6. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)  . Refer to REASSEMBLY [08/2015 - ] - Step 46
7. INSTALL FRONT DOOR FRONT LOWER FRAME UPPER COVER  . Refer to REASSEMBLY [08/2015 - ] - Step 47
8. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG  . Refer to REASSEMBLY [08/2015 - ] - Step 48
9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
   NOTE:

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION [08/2015 - ] .

10. PERFORM DIAGNOSTIC SYSTEM CHECK

    Refer to DTC CHECK / CLEAR [08/2015 - ]

11. INSPECT SRS WARNING LIGHT

    Refer to DIAGNOSIS SYSTEM [08/2015 - ]
