DTC B2341: Sensor (Motor) Failure; DTC B2344: Position Failure [08/2015 - ]: Wiring Diagram

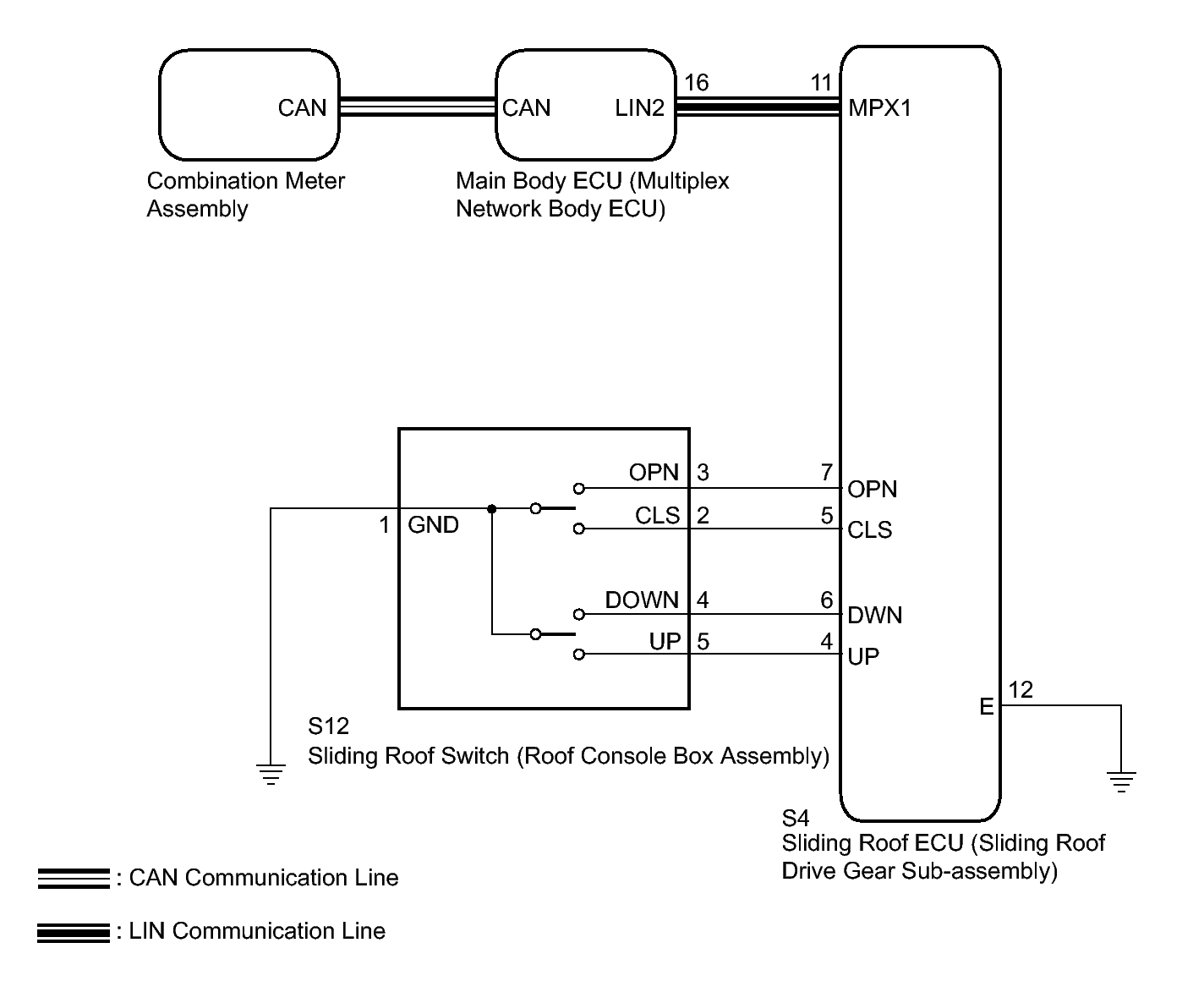

Fig 1: Sliding Roof ECU Wiring Diagram

GTY567994

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
