Open in CAN Main Bus Line [08/2015 - ]: Wiring Diagram

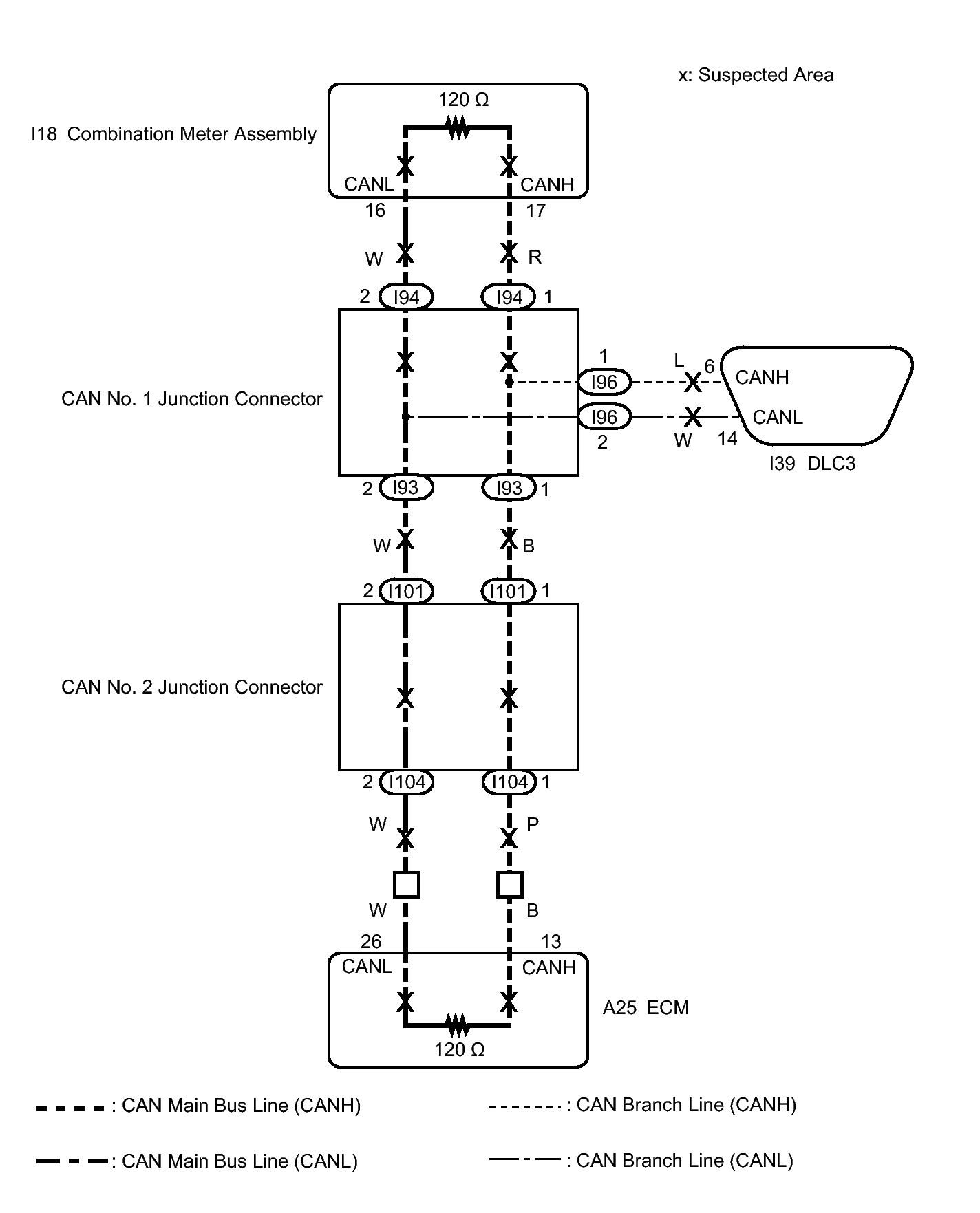

Fig 1: CAN Main Bus Line Wiring Diagram

GTY567358
