Key Cannot be Registered [08/2015 - ]: Procedure

  1. CHECK REGISTRATION MODE
    1. Check that the system enters registration mode. Refer to REGISTRATION [08/2015 - ] .

      OK

      System enters registration mode.

    NG → See step   5

    OK: Go to next step

  2. CHECK SECURITY INDICATOR LIGHT OPERATION
    1. In registration mode, insert the door control transmitter assembly into the ignition key cylinder and check the security indicator light.

      HINT:

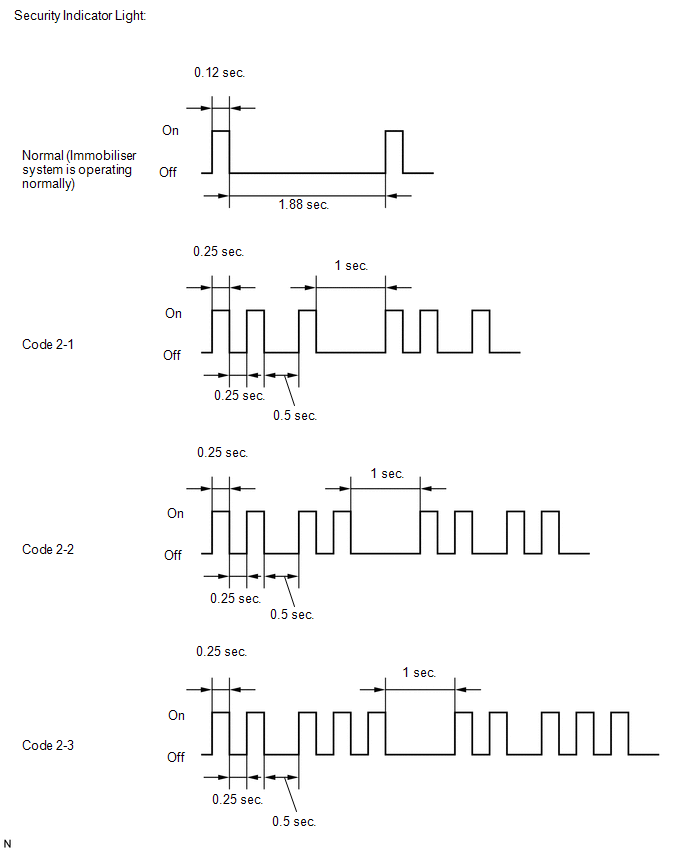

      If the new key ID code registration fails, code 2-1 will be output through the security light. Trying to re-register an already registered door control transmitter assembly will cause code 2-2 to be output when the door control transmitter assembly is inserted. If the number of registered key ID codes exceeds the maximum limit, code 2-3 will be output through the security indicator light. The output details are shown in the following illustration.

      GTY443076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Security Indicator Light *b Normal (Immobilizer system is operating normally)
      *c Code 2-1 *d Code 2-2
      *e Code 2-3 - -

      Result

      Result Proceed to
      Code 2-2 is output A
      Code 2-1 or Code 2-3 is output B

    B → See step   3

    A → END (REGISTERED DOOR CONTROL TRANSMITTER ASSEMBLY WAS USED)

  3. READ VALUE USING TECHSTREAM (TRANSPONDER S-CODE, TRANSPONDER M-CODE)
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Immobilizer / Data List.
    5. Read the Data List according to the display on the Techstream.
      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Transponder S-code Number of registered sub key/min. 0, max. 15 Number of registered sub keys displayed -
      Transponder M-code Number of registered master key/min. 0, max. 15 Number of registered master keys displayed -

      Result

      Result Proceed to
      Values are other than above A
      5 is displayed for "Transponder M-code" and 0 is displayed for "Transponder S-code" B
      0 is displayed for "Transponder M-code" and 3 is displayed for "Transponder S-code" C
      5 is displayed for "Transponder M-code" and 3 is displayed for "Transponder S-code" D

    B → KEY REGISTRATION (SUB-KEY)

    C → KEY REGISTRATION (MASTER KEY)

    D → MAXIMUM NUMBER OF DOOR CONTROL TRANSMITTER ASSEMBLIES ALREADY REGISTERED

    A: Go to next step

  4. KEY REGISTRATION
    1. Refer to the table below to determine if additional door control transmitter assemblies can be registered.
      Number of Door control transmitter assemblies Registered (Master and Sub Proceed to
      0 New key ID code registration
      1 to 7 Additional key ID code registration
    2. Check if an additional door control transmitter assembly can be registered.

      OK

      Additional door control transmitter assembly can be registered.

    NG → REPLACE TRANSPONDER KEY ECU ASSEMBLY

    OK → END (DOOR CONTROL TRANSMITTER ASSEMBLY MALFUNCTION)

  5. INSPECT UNLOCK WARNING SWITCH ASSEMBLY
    1. Remove the unlock warning switch assembly. Refer to REMOVAL [08/2015 - ] .
      GTY477387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 - 2 Pushed
      (Key set)
      Below 1 Ω
      1 - 2 Free
      (Key removed)
      10 kΩ or higher
      TEXT IN ILLUSTRATION

      *a Component without harness connected
      (Unlock Warning Switch Assembly)
      *b Free
      *c Pushed

    NG → See step   7

    OK: Go to next step

  6. CHECK HARNESS AND CONNECTOR (TRANSPONDER KEY ECU ASSEMBLY - UNLOCK WARNING SWITCH ASSEMBLY - BODY GROUND)
    1. Disconnect the I19 transponder key ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      I19-3 (KSW) - I33-1 (UN+) Always Below 1 Ω
      I19-3 (KSW) or I33-1 (UN+) - Body ground Always 10 kΩ or higher
      I33-2 (UN-) - Body ground Always Below 1 Ω

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → REPLACE TRANSPONDER KEY ECU ASSEMBLY

  7. REPLACE UNLOCK WARNING SWITCH ASSEMBLY. Refer to  REMOVAL [08/2015 - ]
