Installation [10/2014 - ]: Procedure

  1. INSPECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH

    See step  1

  2. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH
    1. Engage the guide and install the rear seat inner with center belt assembly LH with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

    2. Check that the ELR locks.
      NOTE:

      The check should be performed with the rear seat inner with center belt assembly LH installed.

      1. With the belt assembly installed, check that the belt locks when it is pulled out quickly.
  3. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY

    See step  4

  4. INSTALL REAR SEAT SHOULDER BELT HOLE COVER

    See step  5

  5. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH

    Refer to PROCEDURE - Step 21 and PROCEDURE - Step 23

  6. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  7. CONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH

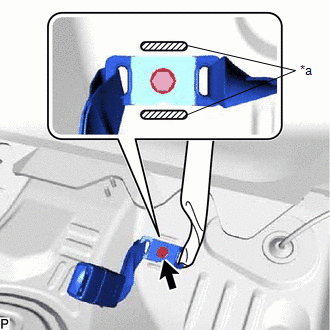

    1. Connect the floor anchor of the rear seat inner with center belt assembly LH with the bolt.
      GTY573009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Protruding Part

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      NOTE:
      • Install the rear seat inner with center belt assembly LH with the arrow on the anchor part facing the front of the vehicle.
      • Do not allow the anchor part of the rear seat inner with center belt assembly LH to overlap the protruding parts of the floor panel.
  8. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

    See step  1

  9. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH

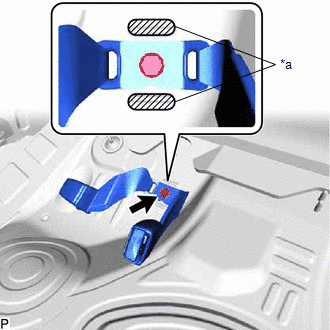

    1. Install the rear seat inner with center belt assembly RH with the bolt.
      GTY580997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Protruding Part

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      NOTE:
      • Install the rear seat inner with center belt assembly RH with the arrow on the anchor part facing the front of the vehicle.
      • Do not allow the anchor part of the rear seat inner with center belt assembly RH to overlap the protruding parts of the floor panel.
  10. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH

    See step  2

  11. CONNECT REAR SEAT OUTER BELT ASSEMBLY LH

    See step  10

  12. CONNECT REAR SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  13. INSTALL REAR SEAT SIDE GARNISH LH

    Refer to PROCEDURE - Step 22 and PROCEDURE - Step 24

  14. INSTALL REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  15. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 29 and PROCEDURE - Step 31

  16. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH

    Refer to PROCEDURE - Step 39 and PROCEDURE - Step 41

  17. INSTALL REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 30 and PROCEDURE - Step 32

  18. INSTALL REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  19. INSTALL REAR SEAT ASSEMBLY

    (Refer to INSTALLATION [10/2014 - ] )
