Precaution [10/2014 - ]

WARNING:

Replace any faulty parts of the seat belt systems (outer belt, inner belt, bolts, nuts, adjustable shoulder anchor, tether anchor hardware and other related parts). When inspecting a vehicle that was in a collision, be sure to check all of the seat belt systems regardless of whether or not the system was activated in the collision. Replace any damaged or malfunctioning systems.

GTY178266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

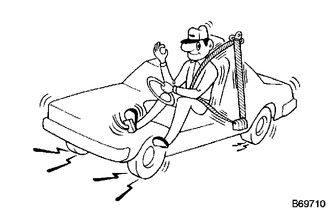

  1. ROAD TEST (IN SAFE AREA)
    WARNING:

    Conduct this test in a safe area.

    1. Fasten the front seat belts.
    2. Drive the vehicle at 16 km/h (10 mph) and firmly depress the brake pedal. Check that the belts lock and cannot be extended at this time.

      If a belt does not lock, replace the seat belt assembly (Refer to REMOVAL [10/2014 - 10/2015] Refer to REMOVAL [10/2015 - ] ).

      HINT:

      Inspect the seat belt assembly before installing it (Refer to INSPECTION [10/2014 - 10/2015] Refer to INSPECTION [10/2015 - ] ).
