Installation [10/2015 - ]: Procedure

1. Engage the guide and temporarily install the front shoulder belt anchor adjuster assembly with the 2 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Fully tighten the bolt (A) first, then the bolt (B) to install the front shoulder belt anchor adjuster assembly.

   Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

1. Check the ELR function.

   See step  1

1. Temporarily install the front seat outer belt assembly with the 2 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

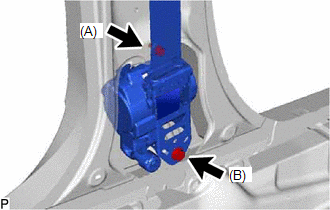

2. Fully tighten the bolt (A) first, then the bolt (B) to install the front seat outer belt assembly.

   Bolt (A)

   Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

   Bolt (B)

   Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

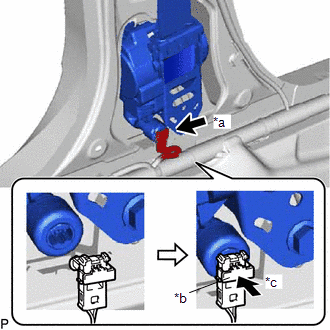

3. Connect the pretensioner connector and lock the locking button as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Pretensioner Connector
   *b	Locking Button
   *c	Lock

   NOTE:

   Securely lock the locking button.

4. Connect the shoulder anchor of the front seat outer belt assembly with the nut.

   Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

Refer to PROCEDURE - Step 27

Refer to PROCEDURE - Step 28

1. Install the floor anchor of the front seat outer belt assembly with the bolt.

   Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

2. Check that the ELR locks.
   NOTE:

   The check should be performed with the front seat outer belt assembly installed.

   1. With the belt assembly installed, check that the belt locks when it is pulled out quickly.

1. Engage the 3 claws to install the lap belt outer anchor cover.

for LH Side:

Refer to PROCEDURE - Step 31

for RH Side:

Refer to PROCEDURE - Step 41

Refer to PROCEDURE - Step 32

for LH Side:

Refer to PROCEDURE - Step 34

for RH Side:

Refer to PROCEDURE - Step 44

Refer to PROCEDURE - Step 36

Refer to INITIALIZATION [10/2015 - ]

Refer to DIAGNOSIS SYSTEM [10/2014 - ]
