Removal [10/2015 - ]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY

    Refer to REMOVAL [10/2014 - ]

  2. REMOVE FRONT SEAT INNER BELT ASSEMBLY LH (for Driver Side)
    1. Disengage each clamp under the front seat assembly LH.
    2. Disengage the clamp.
      GTY473749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the nut and front seat inner belt assembly LH.
  3. DISCONNECT FRONT SEATBACK BOARD SUB-ASSEMBLY RH (for Front Passenger Side)

    HINT:

    Use the same procedure described for the LH side.

    Refer to PROCEDURE - Step 2 or PROCEDURE - Step 2

  4. REMOVE FRONT SEAT INNER CUSHION SHIELD RH (for Front Passenger Side)

    HINT:

    Use the same procedure described for the LH side.

    Refer to PROCEDURE - Step 3 or PROCEDURE - Step 3

  5. REMOVE FRONT SEAT INNER BELT ASSEMBLY RH (for Front Passenger Side)
    1. Disengage the guide and disconnect the front seat cushion cover sub-assembly RH.
      GTY473750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector under the front seat assembly RH.
    3. Disengage each clamp under the front seat assembly RH.
    4. Disengage the clamp.

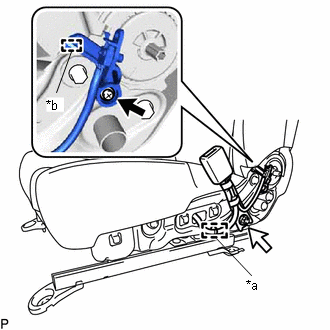

      GTY549243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Guide
    5. Remove the screw.
    6. Disengage the guide and disconnect the recline limit switch.
    7. Remove the nut and front seat inner belt assembly RH.
