Components [10/2015 - ]: Illustration

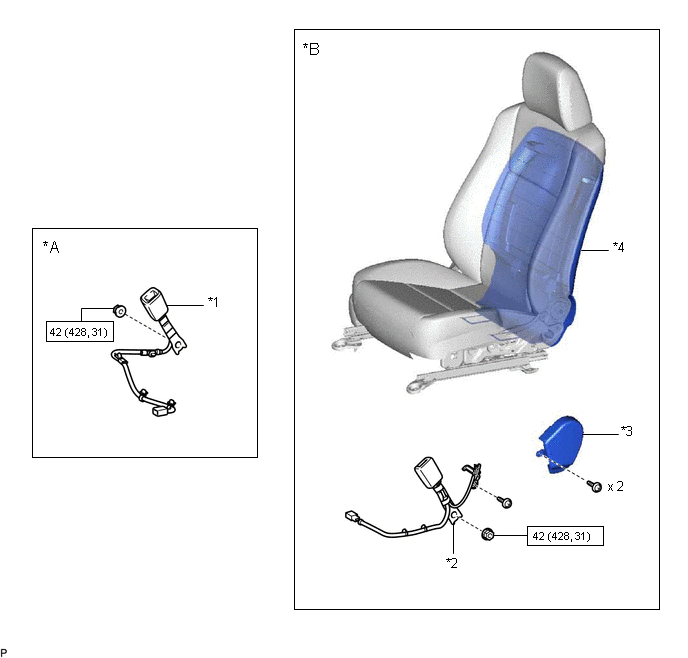

Fig 1: Front Seatback Board Sub-Assembly Replacement Components With Torque Specifications (2 of 2)
GTY599243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Driver Side *B for Front Passenger Side
*1 FRONT SEAT INNER BELT ASSEMBLY LH *2 FRONT SEAT INNER BELT ASSEMBLY RH
*3 FRONT SEAT INNER CUSHION SHIELD RH *4 FRONT SEATBACK BOARD SUB-ASSEMBLY RH
N*m (kgf*cm, ft.*lbf): Specified torque - -
