Removal [10/2014 - ]: Procedure

  1. REMOVE REAR SEAT ASSEMBLY

    (Refer to REMOVAL [10/2014 - ] )

  2. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

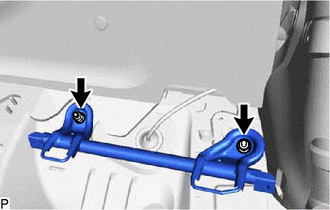

    1. Remove the 2 nuts and child restraint seat anchor bracket sub-assembly LH.
      GTY375426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH

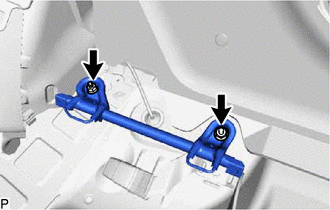

    1. Remove the 2 nuts and child restraint seat anchor bracket sub-assembly RH.
      GTY375425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
