Installation [10/2014 - ]: Procedure

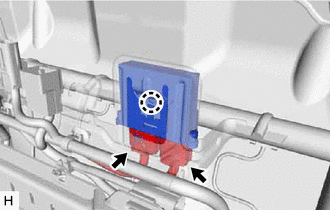

1. Engage the claw to install the occupant detection ECU.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   NOTE:

   If the occupant detection ECU has been dropped, or there are any cracks, dents or other defects in the case or connector, replace the occupant detection ECU with a new one.

2. Connect the 2 connectors.
   NOTE:

   When installing the occupant detection ECU, be careful that the SRS wiring does not interfere with or is pinched between other parts.

HINT:

Use the same procedure for the RH side and LH side (Refer to INSTALLATION [10/2014 - ] ).

(Refer to DTC CHECK / CLEAR [10/2014 - ] )

(Refer to INITIALIZATION [10/2014 - ] )
