Reassembly [10/2014 - ]: Procedure

HINT:

Fully tighten the front disc brake bleeder plug after bleeding the system.

1. Apply a light layer of lithium soap base glycol grease to the entire circumference of a new piston seal.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   TEXT IN ILLUSTRATION



   Lithium Soap Base Glycol Grease

2. Install the piston seal to the front disc brake cylinder.
   NOTE:

   Securely install the piston seal into the groove of the front disc brake cylinder.

1. Apply a light layer of lithium soap base glycol grease to the entire circumference of a new cylinder boot and the front disc brake piston.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   TEXT IN ILLUSTRATION



   *1	Cylinder Boot
   *2	Front Disc Brake Piston
   	Lithium Soap Base Glycol Grease

2. Install the cylinder boot to the front disc brake piston as shown in the illustration.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

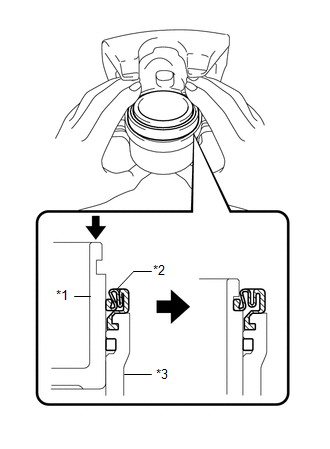

1. Install the front disc brake piston and cylinder boot to the front disc brake cylinder as shown in the illustration.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   TEXT IN ILLUSTRATION



   *1	Front Disc Brake Piston
   *2	Cylinder Boot
   *3	Front Disc Brake Cylinder

   NOTE:

   • Securely install the cylinder boot into the groove of the disc brake cylinder and front disc brake piston.
   • Do not damage the cylinder boot.
