Components [10/2014 - ]: Illustration

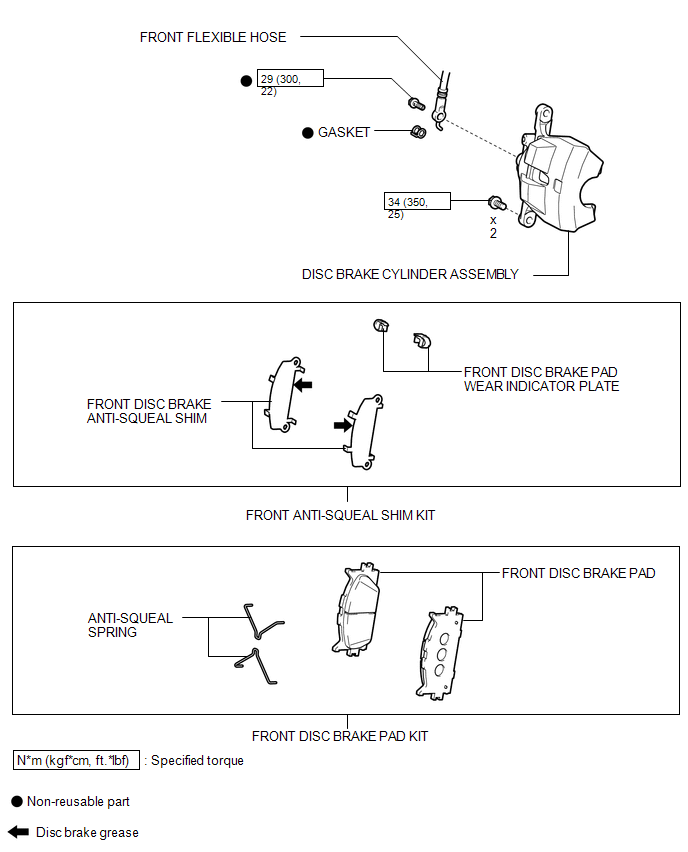

Fig 1: Front Brake Replacement Components With Torque Specifications (1 Of 3)
GTY605938Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

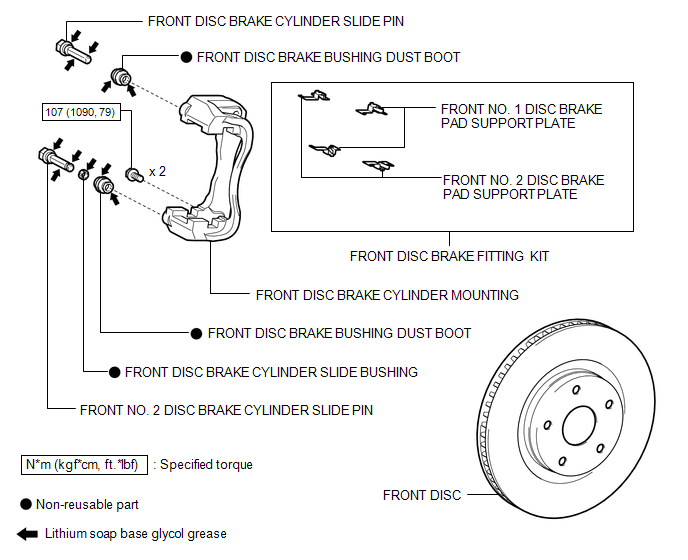

Fig 1: Front Brake Replacement Components With Torque Specifications (2 Of 3)
GTY604226Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

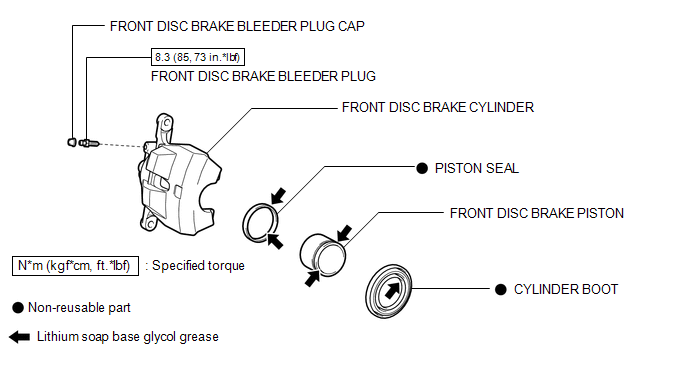

Fig 1: Front Brake Replacement Components With Torque Specifications (3 Of 3)
GTY605749Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
