Removal [10/2014 - ]: Procedure

  1. REMOVE FRONT WHEEL
  2. DRAIN BRAKE FLUID
    NOTE:

    If brake fluid leaks onto any painted surface, immediately wash it off.

  3. REMOVE FRONT FLEXIBLE HOSE
    1. Remove the union bolt and gasket, and separate the front flexible hose from the front disc brake cylinder assembly.
      GTY545495Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    2. Using a union nut wrench, disconnect the brake line while holding the front flexible hose with a wrench.

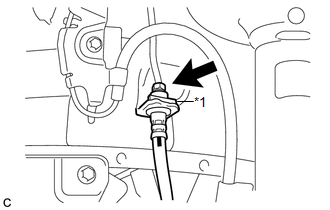

      GTY584094Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
      TEXT IN ILLUSTRATION

      *1 Clip
      NOTE:
      • Do not kink or damage the brake line.
      • Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.
    3. Remove the clip.
    4. Remove the bolt and front flexible hose from the front shock absorber assembly.

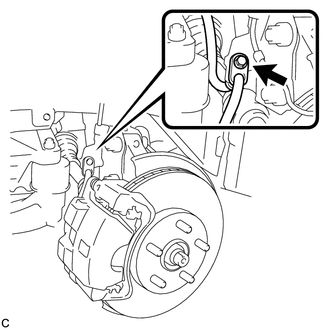

      GTY320236Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
