Installation [10/2014 - ]: Procedure

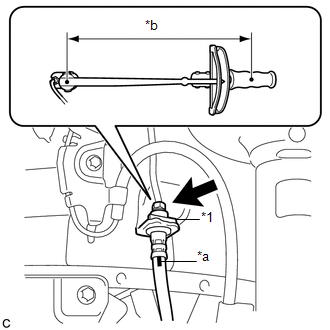

1. Install a new clip to the front flexible hose.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   TEXT IN ILLUSTRATION



   *1	Clip
   *a	Identification Mark
   *b	Torque Wrench Fulcrum Length

   NOTE:

   • Install the clip as far as it will go.
   • When installing the front flexible hose, face the identification mark to the outside of the vehicle and minimize twisting of the hose.
2. Using a union nut wrench, connect the brake line to the front flexible hose while holding the flexible hose with a wrench.

   Specified Tightening Torque

   Torque: 15 N*m (155 kgf*cm, 11 ft.*lbf)

   NOTE:

   • Do not kink or damage the brake line.
   • Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.

   HINT:

   • Calculate the torque wrench reading when changing the fulcrum length for the torque wrench (Refer to PRECAUTION [10/2014 - ] ).
   • When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 250 mm (9.84 in.)):

     14 N*m (142 kgf*cm, 10 ft.*lbf)

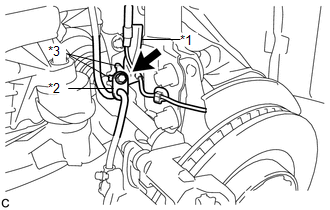

3. Install the front flexible hose together with front speed sensor clamp to the shock absorber bracket with the bolt.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   TEXT IN ILLUSTRATION



   *1	Front Speed Sensor Clamp
   *2	Front Flexible Hose
   *3	Claw

   Torque: 19 N*m (192 kgf*cm, 14 ft.*lbf)

   NOTE:

   First install the front speed sensor clamp, and then install the flexible hose bracket.

4. Connect the front flexible hose to the front disc brake cylinder assembly with a new union bolt and a new gasket.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   TEXT IN ILLUSTRATION



   *a

   Lock Hole

   Torque: 29 N*m (300 kgf*cm, 22 ft.*lbf)

   NOTE:

   Install the flexible hose lock securely into the lock hole in the front disc brake cylinder.

(Refer to BLEEDING [10/2014 - ] )

Torque: 103 N*m (1049 kgf*cm, 76 ft.*lbf)
