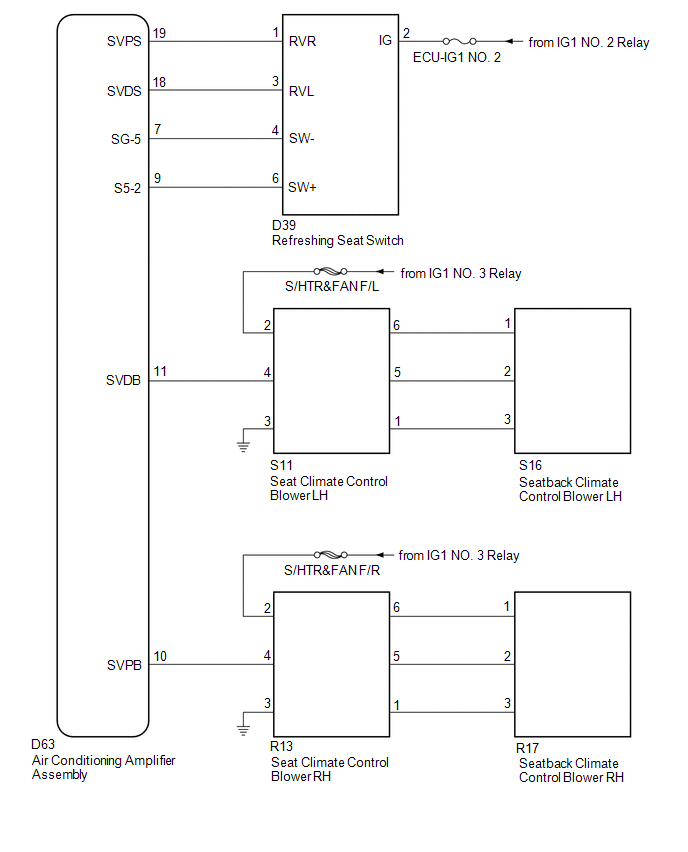

Climate Control Seat System does not Operate [10/2014 - ]: Wiring Diagram

GTY568983

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
