Climate Control Seat - Diagnostics & Symptom Tests - (Except Hybrid)
>>
Climate Control Seat System
>>
Parts Location [10/2014 - ]
>>
Illustration

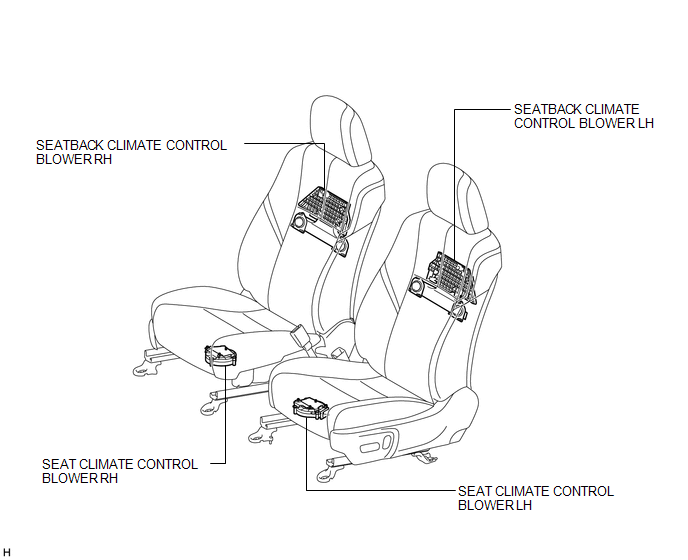

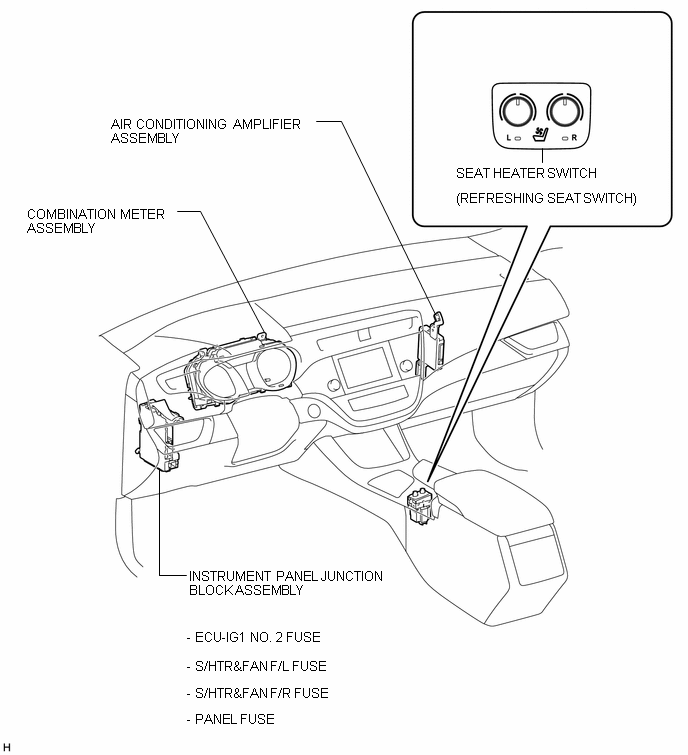

Parts Location [10/2014 - ]: Illustration
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
