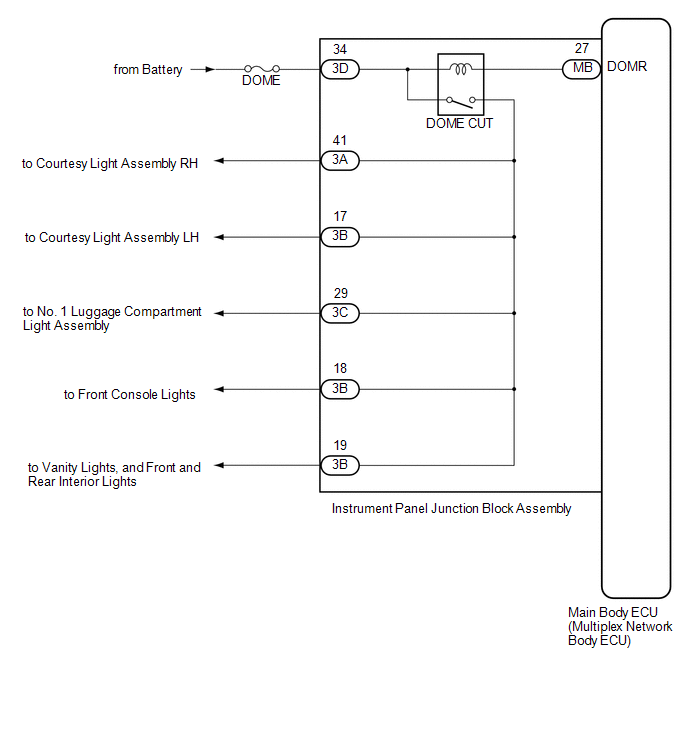

Interior Light Auto Cut Circuit [10/2014 - ]: Wiring Diagram

GTY571612

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
