Safety Connect System - Diagnostic Codes & Symptom Tests - (Except Hybrid)
>>
Safety Connect System
>>
DTC B1573: Short in Telephone Antenna Circuit; DTC B15CB: Telematics Transceiver Antenna Disconnected [10/2014 - ]
>>

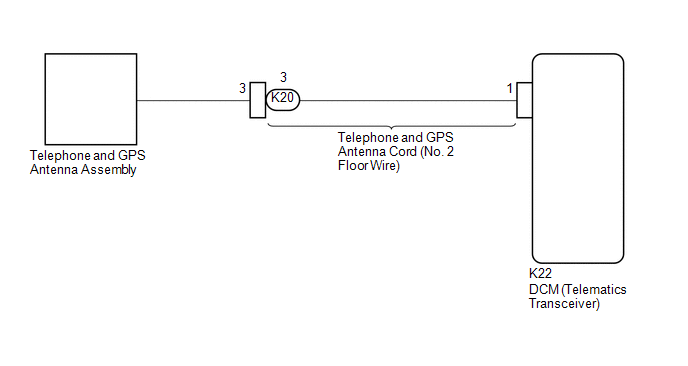

Wiring Diagram
DTC B1573: Short in Telephone Antenna Circuit; DTC B15CB: Telematics Transceiver Antenna Disconnected [10/2014 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
