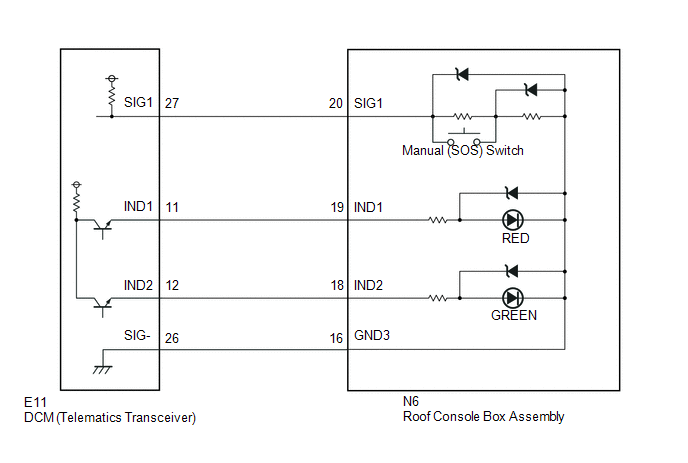

DTC B1570: Manual (SOS) Switch Red Indicator Malfunction [10/2014 - ]: Wiring Diagram

GTY368843

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
